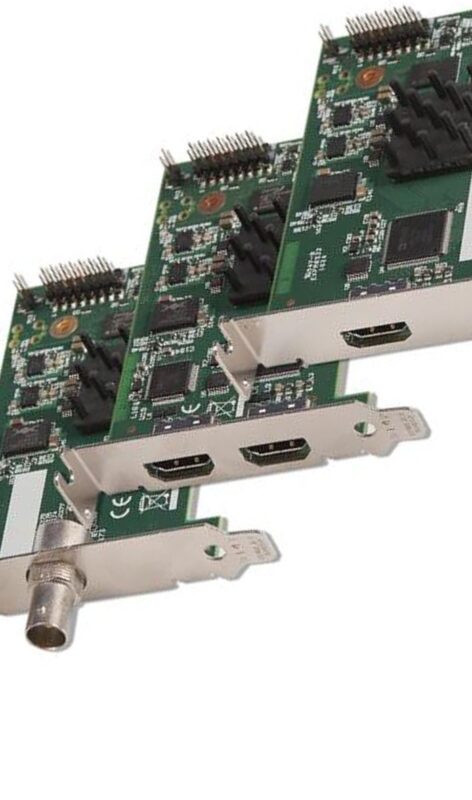

- XTREME VIDEO CAPTURE CARDS

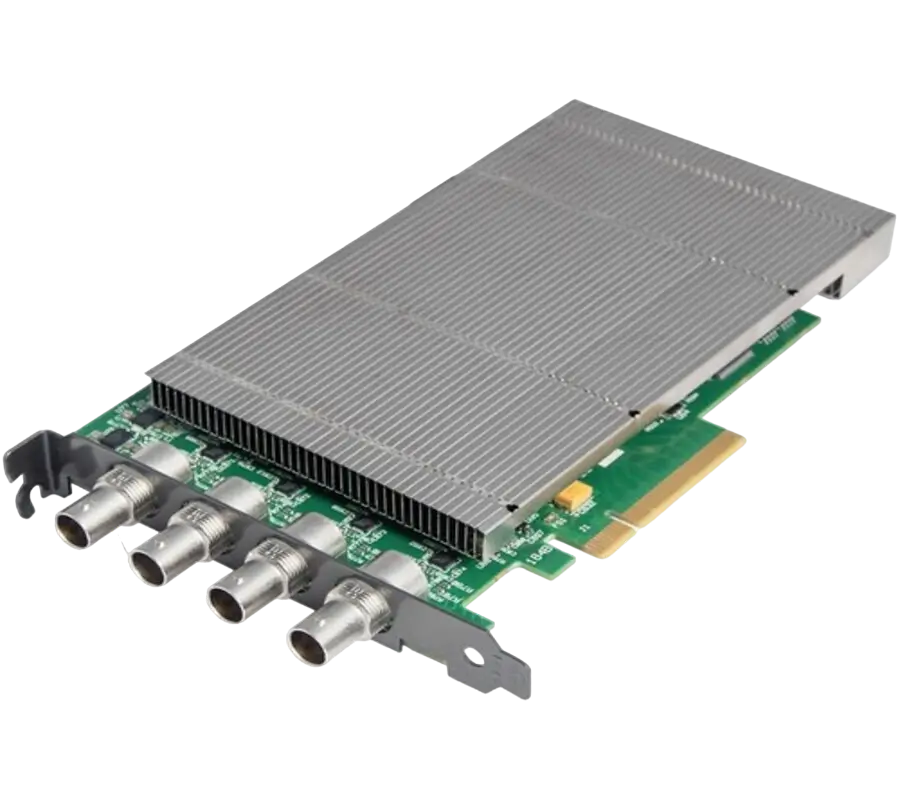

XtremeDV-SDI4
Ideal for use in broadcast markets or with any SDI capable applications the XtremeDVI-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second.

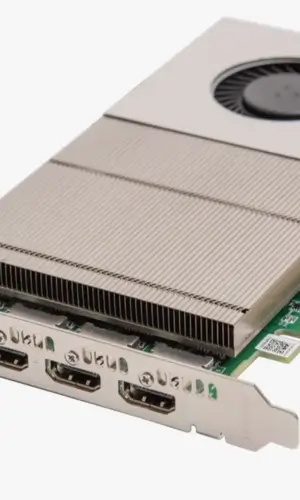

- GRAPHICS CONTROLLER (MULTISCREEN)

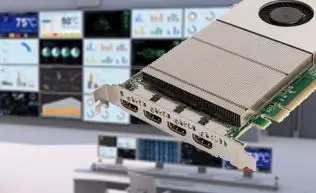

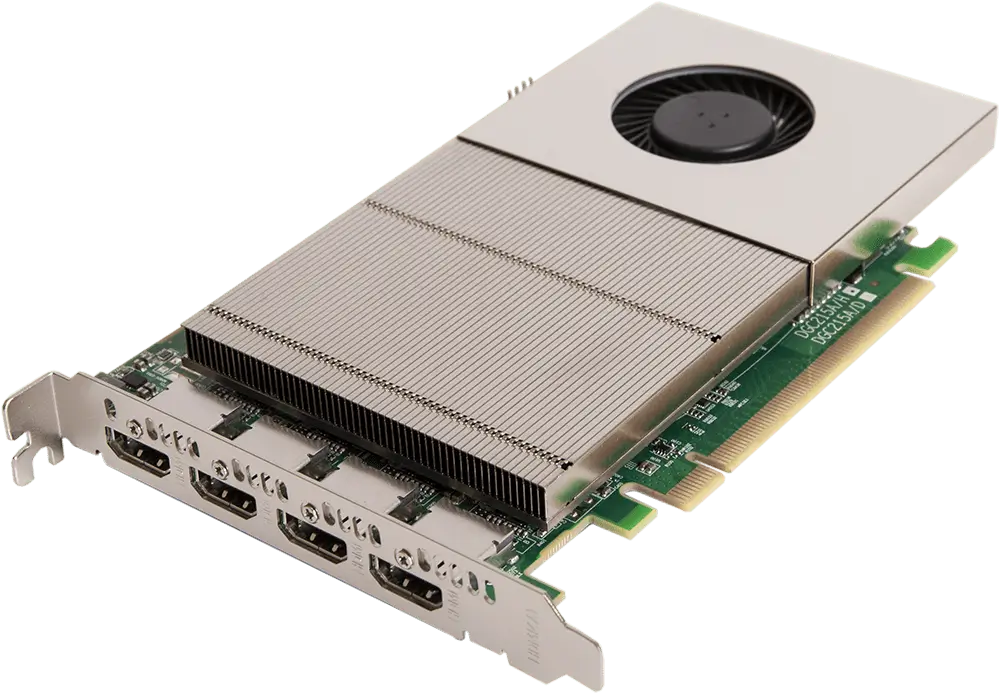

XtremeImage-4K
4 channel DisplayPort 4K Graphics Card
- Four 4K60 4:4:4 HDMI 2.0 outputs
- Enables full 4K60 capture and display in EMS VSN controllers
- VIDEO WALL CONTROLLER SYSTEM

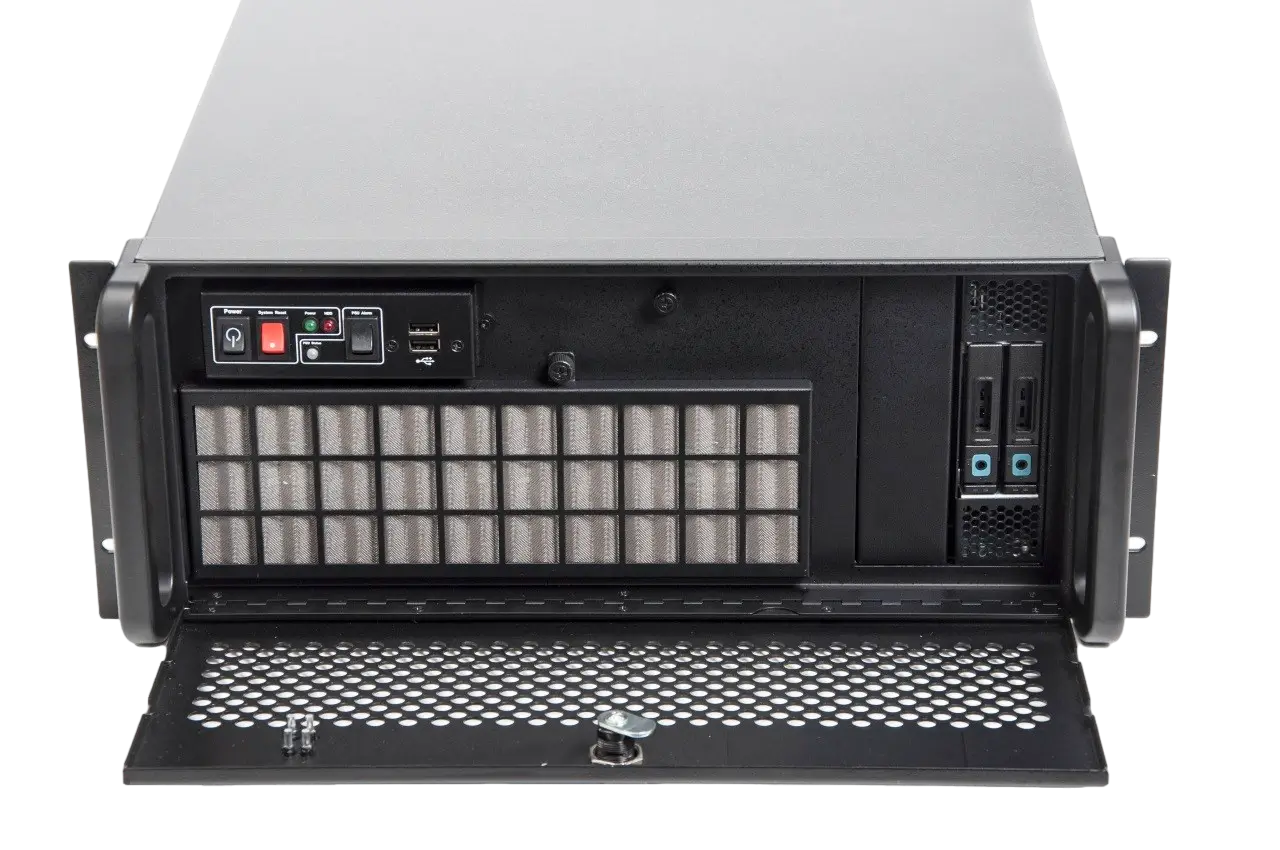

XtremeIPC-VSN-Expansion System
- 9 or 11 Slot Expansion Chassis
- Express9-G3 PCIe backplane providing 1 x 8 lane slot and 8 x 4 lane slots
- SOFTWARE & UTILITY
Vigi Control - Wall Management
- Easily control output sources such as IP feeds, video captures and local applications
- Create templates and produce zones on your video wall for easy placement of content.
Superior Visual Experience

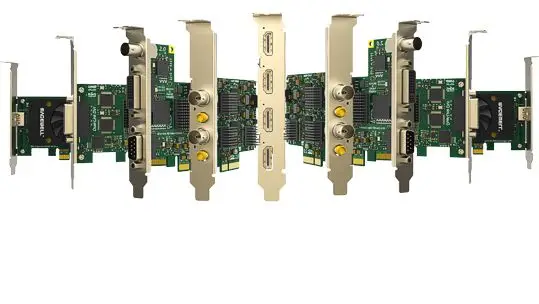

EXTREME VIDEO CARDS
Superior Visual Performance
GRAPHICS CONTROLLER
Command Your Display
VIDEO WALL CONTROLLER SYSTEM
FAST SHIPPING
Fast and reliable delivery
30 DAYS RETURN
Consumer protection program
FAST SUPPORT
Should you have any questions
HIGH-QUALITY
Manufacturing Excellence

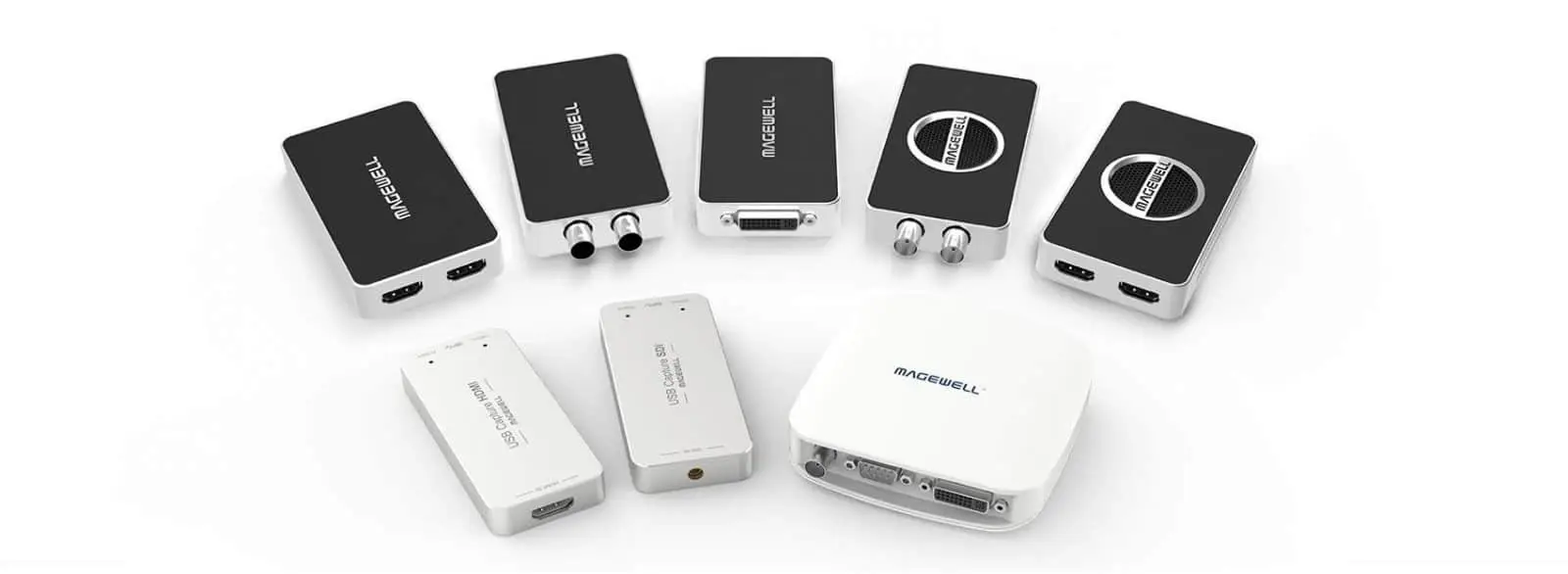

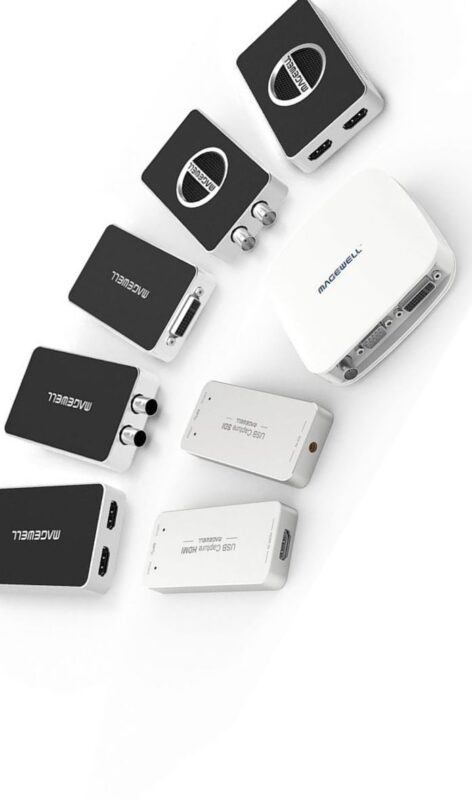

Innovative Magewell Capture Streaming
USB Capture DVI Plus
Magewell Part Number: 32080 One channel HD Capture Device
Quote Me
- DVI + audio
- VGA + audio
- Component + audio
- HDMI + embedded audio
- Audio input via Line in
- Extract HDMI embedded audio output via Line out
Quote Me

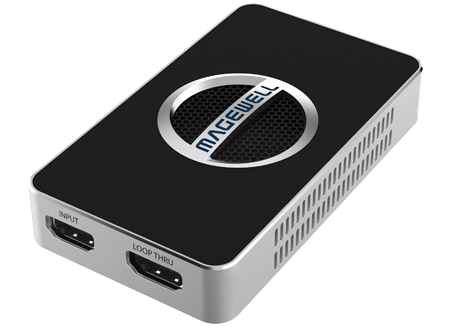

USB Capture HDMI 4K Plus
Magewell Part Number: 32090 One channel 4K Capture Device
Quote Me
- Capture HDMI + embedded audio
- Loop-through HDMI signal
- Audio input via mic
- Extract HDMI embedded audio output via headphones
- Support HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S
Quote Me

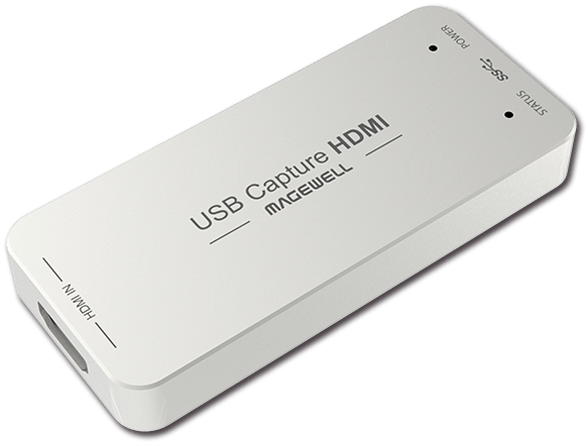

USB Capture HDMI Gen 2 Dongle
USB Capture HDMI Plus
Magewell Part Number: 32040 One channel 2K Capture Device
Quote Me
- Capture HDMI + embedded audio
- Loop-through HDMI signal
- Audio input via mic
- Extract HDMI embedded audio output via headphones
- Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S.
Quote Me
USB Capture SDI 4K Plus
Magewell Part Number: 32100 One Channel 4K Capture Device
Quote Me
- Capture SD/HD/3G/2K/6G SDI + embedded audio
- Loop-through SD/HD/3G/2K/6G SDI
- Audio input via Line in
- Extract SDI embedded audio and output via Line out
Quote Me

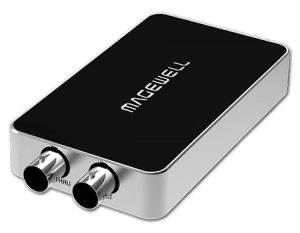

USB Capture SDI Plus
Magewell Part Number: 32050 One Channel 2K Capture Device
Quote Me
- Capture SD/HD/3G/ 2K SDI + embedded audio
- Loop-through SD/HD/3G/2K SDI
- Audio input via Line in
- Extract SDI embedded audio and output via Line out
Quote Me
Master Your Display
Express11 PCIe 11-Slot Backplane
Express11-G3 Backplane
- 11 slot, Gen.3 PCI Express backplane
- Once PICMG 1.3 SBC slot
- Standard ATX form factor
- Support for multiple backplanes for large systems
- Supports 8 GB/s full duplex links
- 96 lanes PCI Express 3.0 switch
- Support for two SATA connections
- Provides headers for (1, 2 or 3) fans
The backplane provides x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The backplane can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.

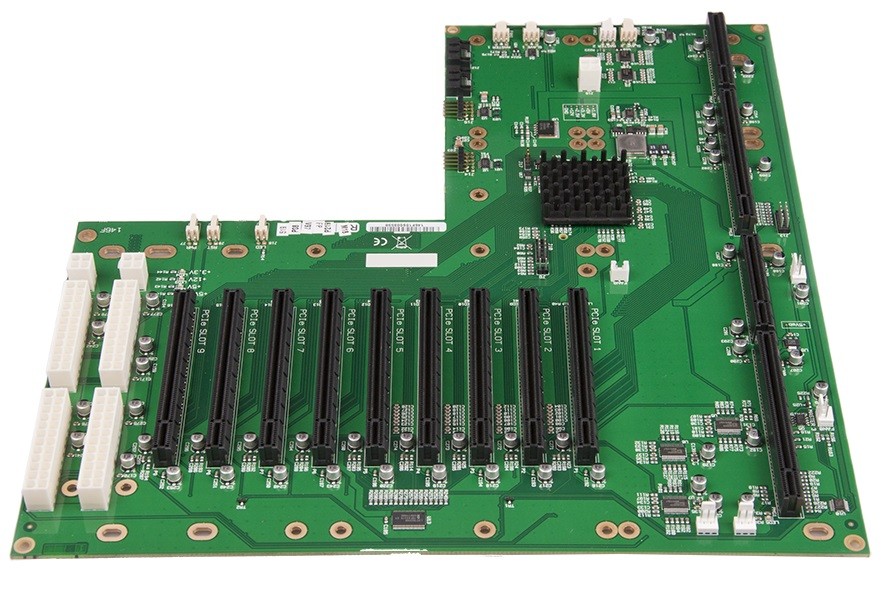

PCIe-Express9 – Backplane 9-Slot
Express9-G3, 9-Slot PCIe Backplane
The backplane provides x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The backplane can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.
- Nine slot PCI Express backplane – 8 x4 lane slots plus 1 x8 lane slot
- One PICMG 1.3 SBC slot
- Supports 8GB/s full duplex links between backplanes using HLink-G3 and SLink-G3
- 48 lane PCIe 3.0 switch
- Compatible with a standard 4U IPC chassis
- Support for daisy chaining multiple backplanes
The backplane provides x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The backplane can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.

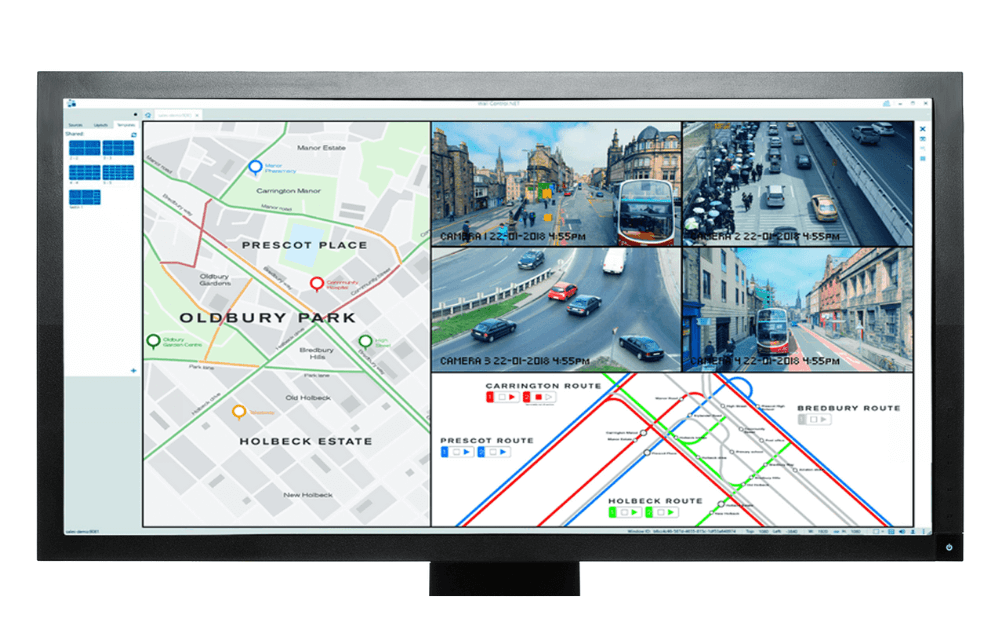

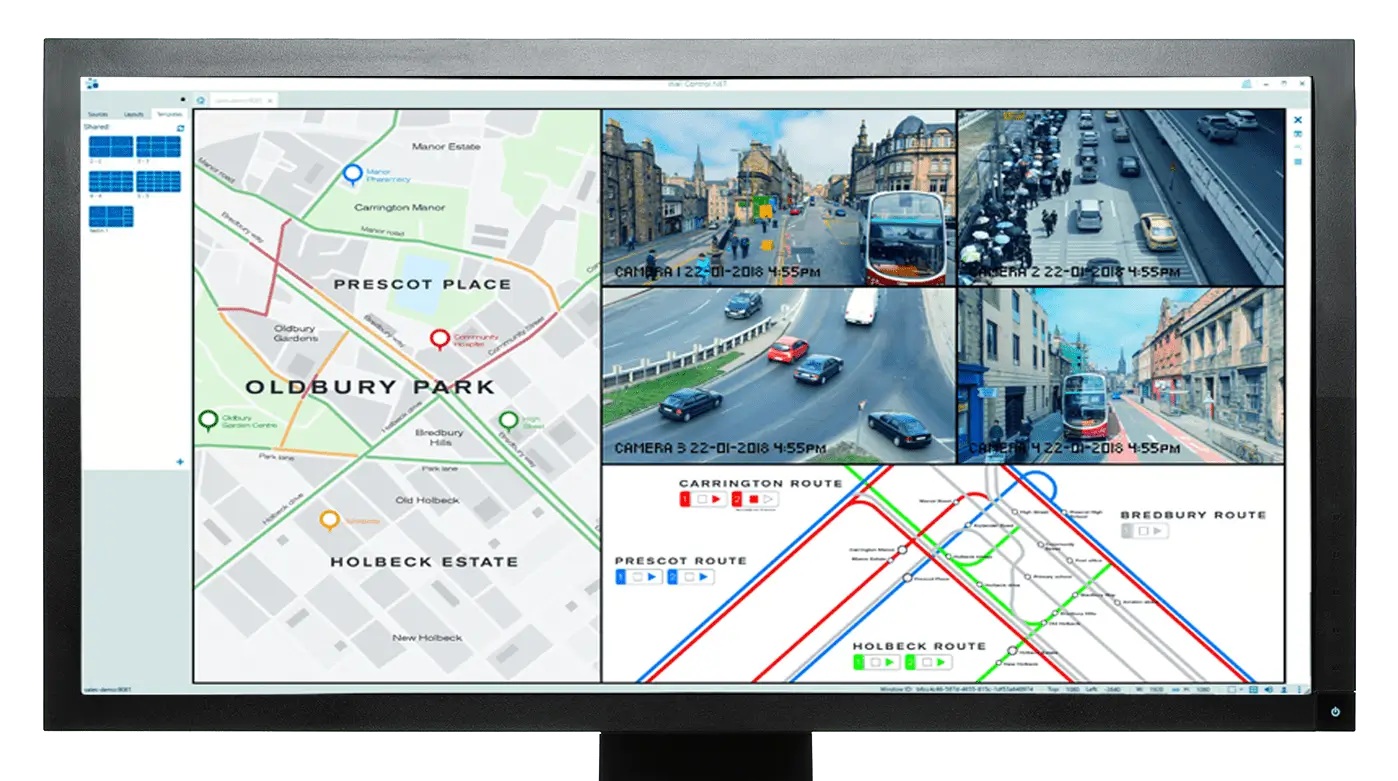

VigiControl
Video Wall Management Software
VigiControl 10 allows users to easily control output sources such as IP feeds, video captures and local applications. These sources can be controlled by VigiControl 10 when the most elaborate and complex wall scenarios are required.
- Easily control output sources such as IP feeds, video captures and local applications
- Create templates and produce zones on your video wall for easy placement of content.
- Deploy templates over a single screen, multiple screens or an entire video wall.
- Template a window to group multiple pieces of content together.
- Select and crop particular areas of interest from a snapshot of your source and deploy them to the video wall.
- Decode up to 8 IP streams.
- Manipulate sources with full keyboard and mouse functionality (KVM)
- Advanced Software, Simplified Interface
VigiControl 10 allows users to easily control output sources such as IP feeds, video captures and local applications. These sources can be controlled by VigiControl 10 when the most elaborate and complex wall scenarios are required.

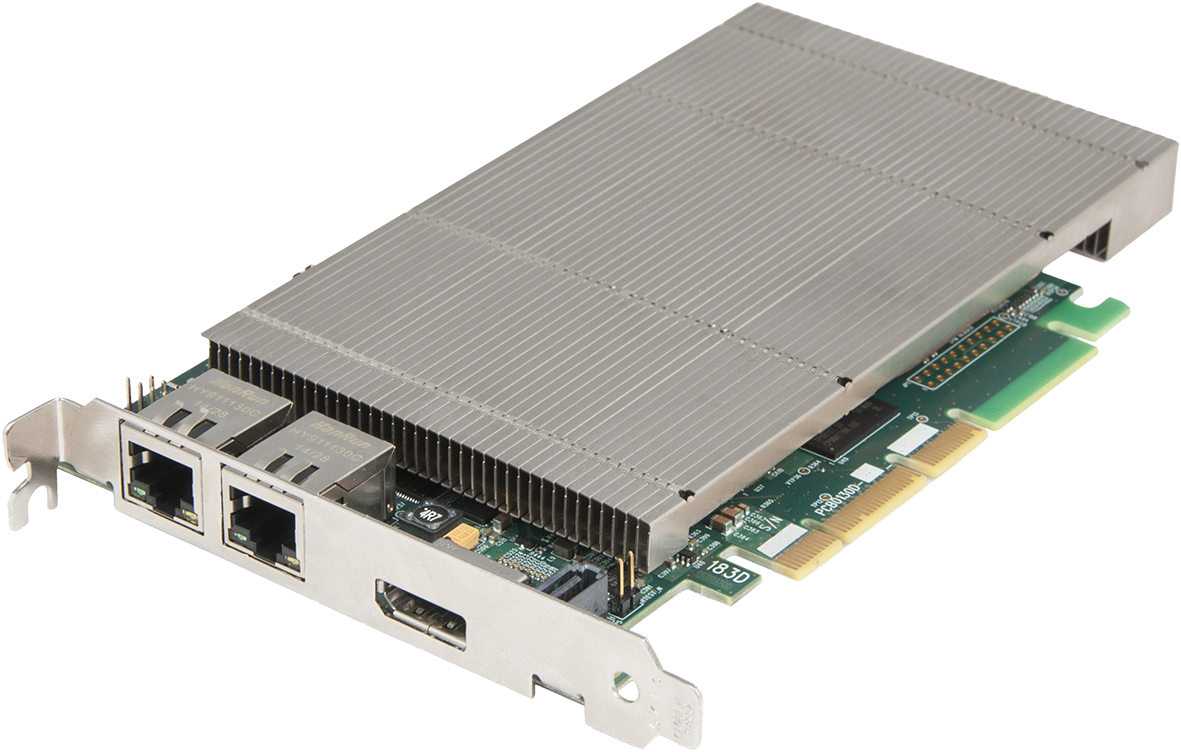

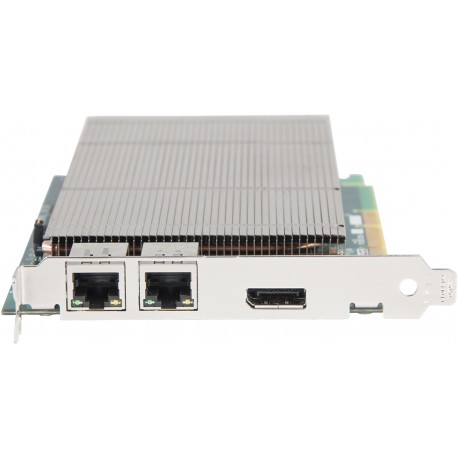

Xtreme-ActiveSQX
Active SQX Dedicated decoding card
The Xtreme-ActiveSQX includes a dedicated processor capable of decoding several IP streams simultaneously via the on-board ethernet ports.
- Dual RJ45 Ethernet ports
- On-board SQX decoding engine
- 800 Mb/s from each Ethernet 'input'
Decode multiple streams simultaneously:
- Up to three 4096x2160p at 30 fps
- Six 1920x1080p at 60 fps / 12 at 30 fps
- 50+D1 resolution streams @ 30fps
- Maximum will depend on H.264 profiles and levels of incoming media
The Xtreme-ActiveSQX includes a dedicated processor capable of decoding several IP streams simultaneously via the on-board ethernet ports.

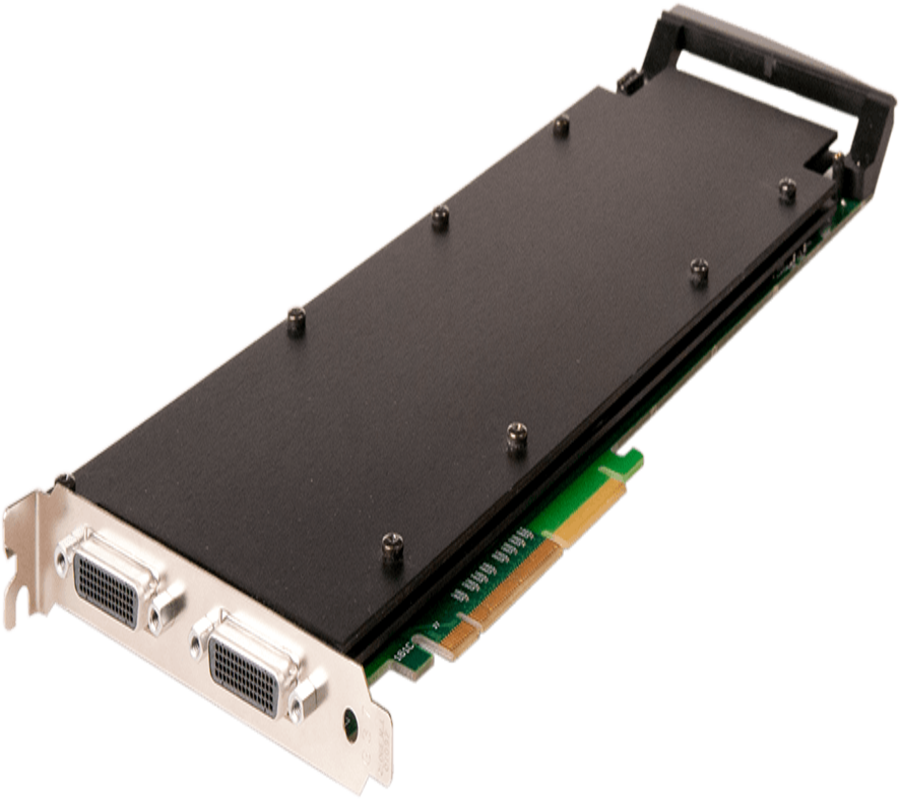

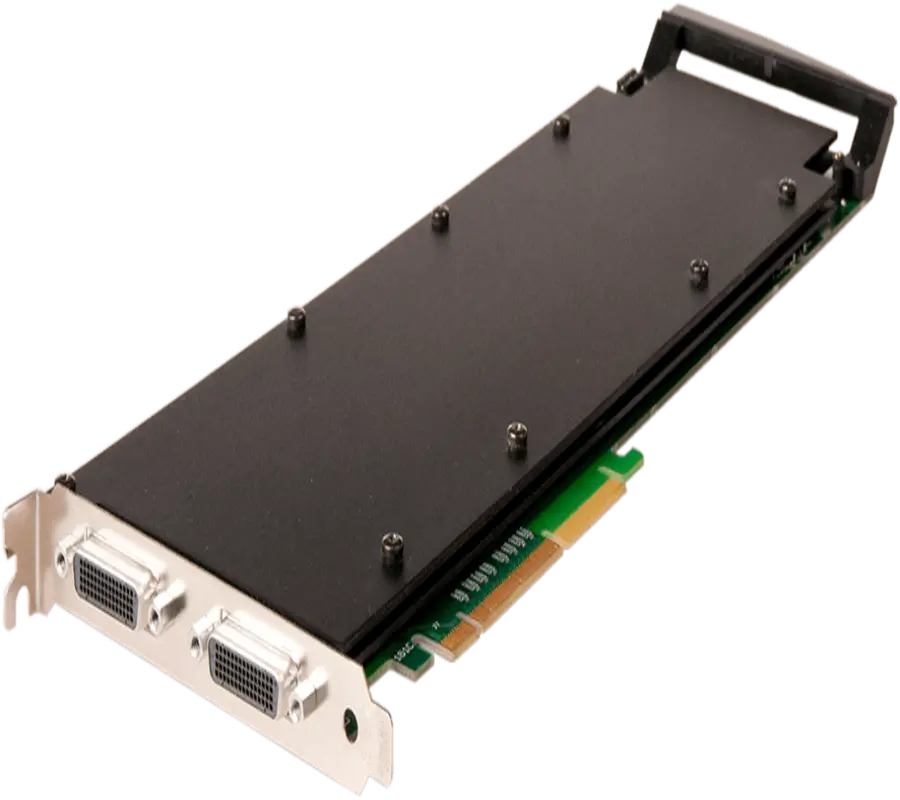

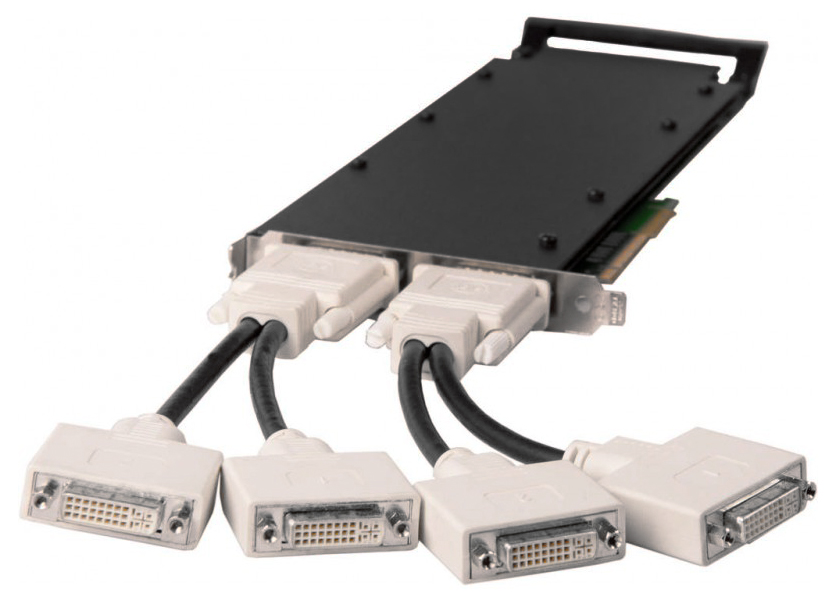

Xtreme-HD4
Quad Channel DVI-I Capture Card
The XtremeHD4 is a high end, four channel, high definition video capture card delivering performance and flexibility in demanding environments. The XtremeHD4 has four independent video capture channels, supporting high definition capture and analogue video.
- 8 Lane PCI Express Gen.3 bus
- 3.2 GB/s total capture bandwidth in 4 PCIe lanes
- Gen.3 or 8 Lanes Gen.2
- 4 x EMS capture processors
- Frame buffer memory 4 x 256 MB
- All standard Xtreme Range features
- EMS unified Windows and Linux driver support
The XtremeHD4 is a high end, four channel, high definition video capture card delivering performance and flexibility in demanding environments. The XtremeHD4 has four independent video capture channels, supporting high definition capture and analogue video.

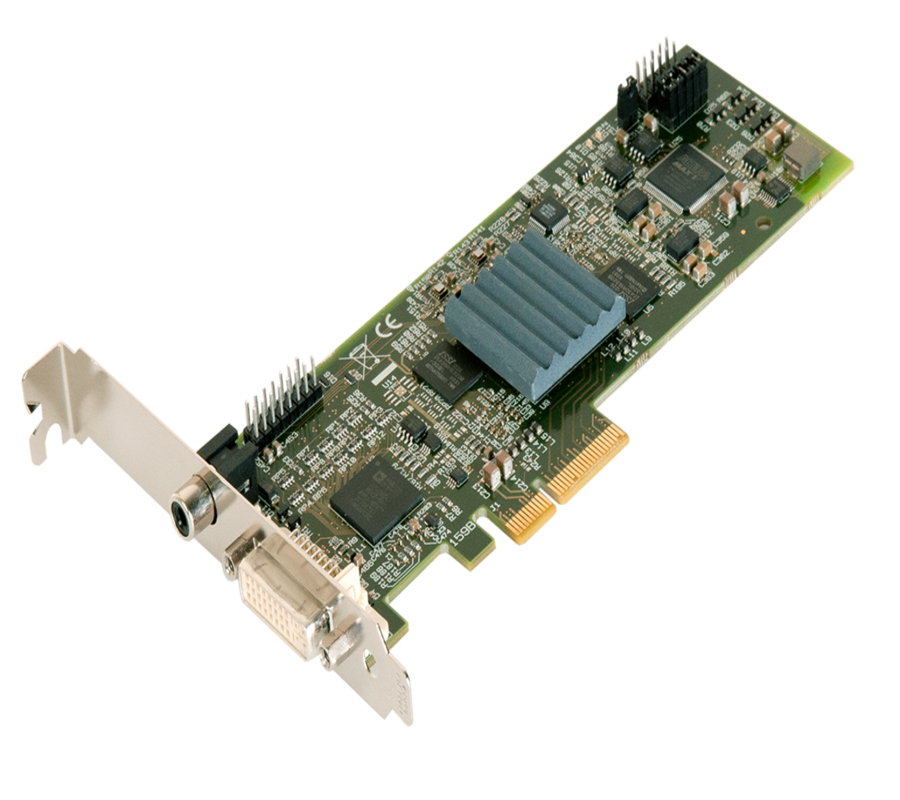

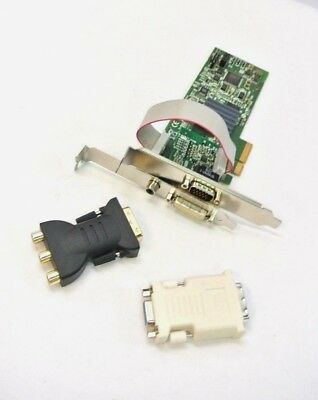

XtremeAV-HD1+
Two Channel Video Capture Card
Provides simultaneous SD and HD video capture through one channel of DVI-I or HDMI capture and one channel of composite video capture.
- HDMI, DVI, RGB, YPbPr, composite video and analogue audio capture
- High quality up/down scaling (7x5 Polyphase Filter)
- Flexible Audio Capture
- Multiple channel audio and video capture
- Small form factor low power consumption
- On card processor for real time mode detection
- Support for Windows and Linux (NOTE: Check Linux specific features with Sales)
Provides simultaneous SD and HD video capture through one channel of DVI-I or HDMI capture and one channel of composite video capture.

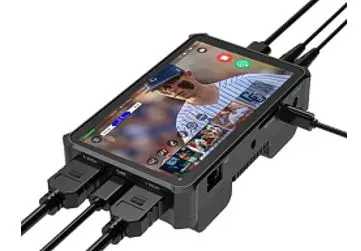

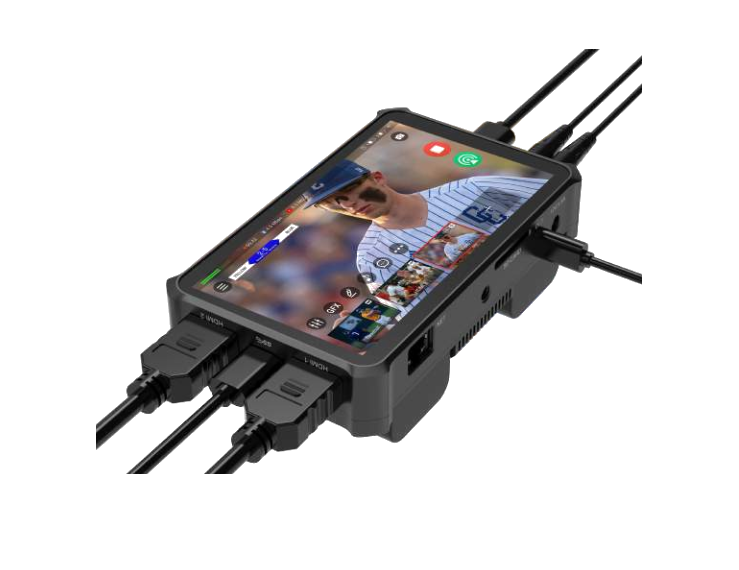

DIRECTOR MINI: TECHNICAL SPECIFICATIONS
DISPLAY SIZE
Screen: 5.44", Type: AMOLED, Aspect ratio: 16:9, Resolution: 1920x1080, Touchscreen
USB FEATURES
Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc. Connect to a USB modem, Connect to a USB flash drive, To transfer video, picture, audio and other media files, Connect to a USB keyboard.
VIDEO INPUTS
HDMI x2 Ports, USB x2 Ports 3.0, Phone Camera (LAN), SRT Stream, RTMP Stream, RTMP Pull, RTMP Push, NDI Stream, Audio Input: Mic/Line - Output, Bluetooth
POWER

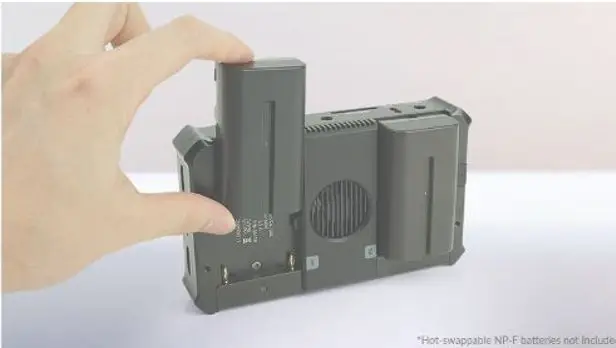

AC power: Power input: 12V/1.5A, Maximum power consumption: 15W, Battery pack, 2x DC 7.4V (NP-F battery packs, not supplied), Hot swappable
FEATURES
Show, Scenes, Audio, GFX, BGM, Pen, PTZ Control, Phone Camera Control, WEB UI, Phone Utility APP, Live stream (YouTube, Twitch, Facebook, RTMP, HLS, SRT , Record,
LOCAL STORAGE
- Local storage: 64 GB
- SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT
All in one Broadcasting Tool

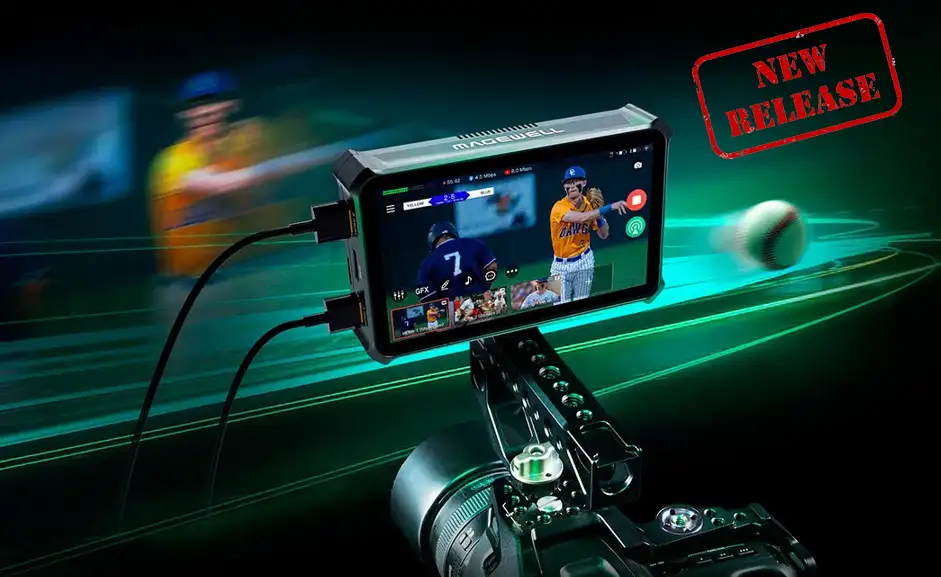

Magewell Director Mini
Available now
High-Quality, Sustainable Capture
USB Capture SDI Gen 2 Dongle

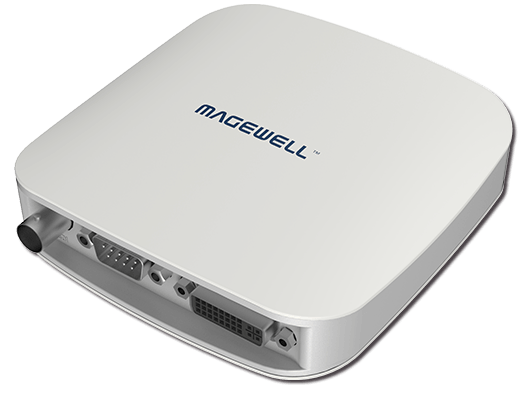

USB Capture AIO
