- XTREME VIDEO CAPTURE CARDS
XtremeDV-SDI4
Ideal for use in broadcast markets or with any SDI capable applications the XtremeDVI-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second.
- GRAPHICS CONTROLLER (MULTISCREEN)
XtremeImage-4K
4 channel DisplayPort 4K Graphics Card
- Four 4K60 4:4:4 HDMI 2.0 outputs
- Enables full 4K60 capture and display in EMS VSN controllers
- VIDEO WALL CONTROLLER SYSTEM
XtremeIPC-VSN-Expansion System
- 9 or 11 Slot Expansion Chassis
- Express9-G3 PCIe backplane providing 1 x 8 lane slot and 8 x 4 lane slots
- SOFTWARE & UTILITY
Vigi Control - Wall Management
- Easily control output sources such as IP feeds, video captures and local applications
- Create templates and produce zones on your video wall for easy placement of content.
XtremeLC-HD
Single channel HDMI capture card
XtremeLC-HD Single-Channel LiveStream Capture CardĀ provides HDMI video and audio capture for small form factor appliances being used in medical environments, simulation systems, live events, PC and gaming console capture, lecture and presentation capture, and real-time streaming. More than one card can be added into a system for multiple capture channels
- Up to 297 Mpixel/s clock capturing up to 4096x2160p @ 30fps
- 800 MB/s DMA bandwidth
- High performance up and down scaling
- Colour space conversion to support output formats
- PCI Express Gen 1 x 4 low profile
- Media Foundation supported
- EMS unified WindowsĀ® and LinuxĀ® driver support
XtremeLC-HD Single-Channel LiveStream Capture CardĀ provides HDMI video and audio capture for small form factor appliances being used in medical environments, simulation systems, live events, PC and gaming console capture, lecture and presentation capture, and real-time streaming. More than one card can be added into a system for multiple capture channels

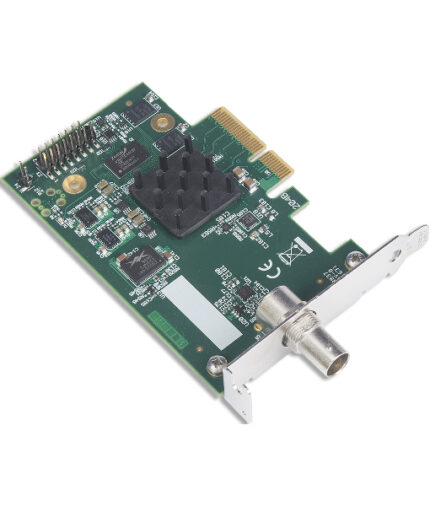

XtremeLC-SDI
Single Channel SDI Capture Card
XtremeLC-SDI. Discreet video capture is now the mainstay of many small form factor appliances being used in markets such as lecture capture, distance learningĀ ...
- Single SDI capture channel
- SD/ HD/ 3G at 60 fps
- 800 MB/s DMA bandwidth
- High performance up and down scaling
- Colour space conversion to any output formats
- PCI Express Gen 1x4 low profile
- EMS unified WindowsĀ® and LinuxĀ® driver support
XtremeLC-SDI. Discreet video capture is now the mainstay of many small form factor appliances being used in markets such as lecture capture, distance learningĀ ...
