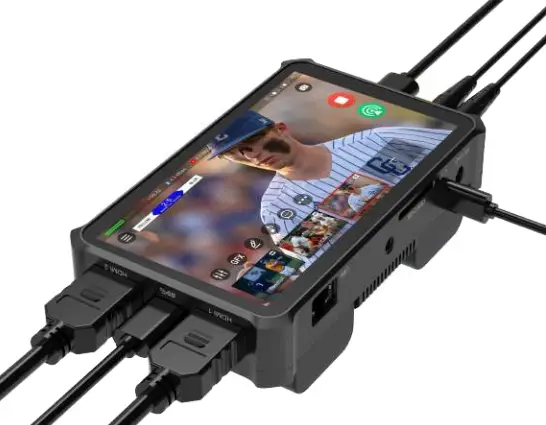

Magewell Director Mini
£1,040.00
Magewell Part Number: 55110
- A portable device that does multi-input switching, graphics, streaming, recording and monitoring
- Supports flexible input sources ranging from AV and IP streams to media files
- Intuitive user interface and companion app for scene editing and creating shows
- Rich output possibilities including RTMP and SRT streams, NDI® HX3 and local displays
(picture-in-picture or side-by-side) into a combined output
Description
Effortless Live Streaming and Production
The Magewell Director Mini revolutionizes live streaming and video production by integrating multiple functionalities into a singular, portable device. Whether you’re covering an event live, streaming a workshop, or creating engaging content for your viewers, the Director Mini simplifies the process. Easily handle multi-input switching, graphics overlay, and simultaneous streaming and recording without needing multiple devices. Its compact design makes it an ideal choice for-the-go creators and professionals in the field.
. Compared to Magewell’s original USB dongles with just an HDMI or SDI input, the USB Capture HDMI Plus and SDI Plus have an input interface as well as a loop through one, which enables monitoring the image while streaming and/or recording. In addition, the new dongles have different audio input and output functions. A 3.5mm audio interface allows for capture of analog audio from a separate audio device (not embedded in HDMI input). An analogue microphone input is available for live narration during capture. This eliminates the need for an additional audio capture device. The 3.5mm headphones interface allows for playback of audio (either extracted from the embedded HDMI audio or from the analog audio input).
Intuitive Control at Your Fingertips
Experience the ultimate ease of use with the Director Mini’s intuitive user interface, accessible through an integrated AMOLED touchscreen. Quickly edit scenes, adjust transitions, and manage inputs without needing a steep learning curve. It’s designed for efficiency, allowing users to focus more on content and less on technical setups. With its companion app, even complex scene editing and show creations are effortlessly manageable.
Versatile Input and Output Options
With the Director Mini, versatility is at your fingertips. This device supports a wide range of input sources, including HDMI, USB, and various IP streams like NDI® HX and SRT, making it incredibly flexible for different production needs. It also boasts extensive output capabilities such as RTMP and SRT streams, as well as local display options. Whether you’re streaming directly to the web or displaying content across multiple screens, the Director Mini handles it all seamlessly.
FEATURES
- Show
- Supports creating multiple shows in landscape (16:9) or portrait (9:16) mode, and manage them
- Scenes
- Supports creating multiple scenes in a show, and managing them
- Supports adding various sources, including HDMI, WEBCAM, video, picture, RTMP stream, SRT stream, phone camera, NDI stream, text and color
- Supports multi-view composition in one scene
- Provides lots of editing tools, including keyer, crop, transition, etc.
- Supports switch scenes directly or preview at first and then switch
- Supports switching scenes with an instant cut or fade effect.
- Audio
- Supports displaying level and peak through audio meter
- Supports adjusting the level of each input audio, output and monitor audio
- Supports AFV (Audio-follow-video)
- Supports solo monitor
- Supports switching microphone device
- Supports switching monitor device
- GFX
- Supports multiple GFX types, including title, lower third, animated text, digital clock, analog clock, bullet list, social media, logo, scoreboard, timer, stopwatch, custom picture and text
- Supports displaying multiple GFXs, and managing them
- Supports controlling scoreboard, timer and stopwatch in real time
- BGM
- Supports adding BGM for each scene and controlling in real time
- Pen
- Annotates on the screen in real time
- PTZ control
- Supports controlling PTZ camera via the network, supporting Visca UDP, supported sources including HDMI, WEBCAM (UVC camera), SRT stream, RTMP stream, and NDI stream
- Live stream
- Natively supports streaming to YouTube, Twitch and Facebook Live
- Supports streaming with SRT and RTMP protocols
- Supports two NDI® HX3 outputs
- Supports customizing encoding parameters and selecting the encoding source for ISO streaming
- Supports streaming to two destinations simultaneously
- Supports showing live comments when streaming to social media
- Record
- Supports customizing encoding parameters and selecting the encoding source
- Supports saving recording files in MP4 or MOV format to local storage or SD card
- Supports saving screenshot files in PNG format to local or SD card
- Supports splitting recording files by time or size, up to 1 hour or 4G
- Supports exporting or downloading files through computer, SD card, USB flash drive, App, or Web UI
Specifications
Specifications:
VIDEO INPUT
- HDMI
- Port: 2x HDMI 1.4 Type-A port
- Typical resolution/frame rate:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080i 25/29.97/30
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p 50/100
- 720x576i 25/50
- 720x480p 59.94/60
- 720x480i 29.97/30
- Color depth: 8/10/12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- USB
- Port: 2x USB 3.0 Type-A port
- Resolution/frame rate: Up to 1920x1080p, 60fps
- Codec: YUYV, MJPG, NV12
- Phone Camera
- Connection mode: LAN
- Resolution/frame rate: Up to 1080p, 60fps
- SRT stream
- Resolution/frame rate: Up to 1080p, 60fps
- RTMP stream
- Resolution/frame rate: Up to 1080p, 60fps
- NDI stream
- NDI® HX2 or NDI® HX3
- Resolution/frame rate: Up to 1080p, 60fps
- Video
- Resolution: Up to 4K
- Codec: H.264
- Format: MOV/MP4
- Picture
- Format: JPEG/PNG/BMP
AUDIO INPUT
- Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
- Audio input from USB port: 2-channel (only microphone supported)
- Audio input from phone microphone
- Audio from SRT stream
- Audio from RTMP stream
- Audio from NDI stream
- Audio embedded in video files
- Background music (BGM): MP3, M4A, WAV files
VIDEO OUTPUT
- Streaming and recording
- Resolution: 1080p, 720p, 540p, 360p (only for NDI)
- Frame rate: 60fps, 30fps, 15fps
- Bitrate:
- NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
- Others: up to 30.0Mbps, down to 256kpbs
- Key frame interval: customizable
- Profile: High profile, Main profile, Baseline profile
- Bitrate mode: VBR, CBR
- USB-C DP-OUT
- Port: 1* USB 3.0 Type-C port
- Display: 1920x1080
- Frame rate: 60fps
- Sampling format: RGB 4:4:4
AUDIO OUTPUT
- Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
- Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
- Audio output via USB-C OUT port: 2-channel, 48 KHz, 16-bit
- Audio output via USB-A port: 2-channel, 48 KHz, 16-bit
FEATURES OF USB-A PORT
- Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
- Connect to a USB flash drive
- To transfer video, picture, audio and other media files, firmware update files, log files, etc.
- Supported system format: FAT32, exFAT and NTFS
FEATURES OF USB-C OUT PORT
- Connect to an external screen
- Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
- A/V display mode options: Clean Program, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
- Image rotation: Rotate 90° to left, or rotate 90° to right
- Connect to a computer
- Transfer video, picture, audio and other media files, firmware update files, log files, etc.
NETWORK
- Supports Ethernet and WiFi
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and AP modes supported
- Supports Bluetooth for audio monitoring with Bluetooth devices
- Bluetooth: BT 5.0
DIRECTOR UTILITY APP
- OS version: iOS 11 and later, Android 7.0 and later
- Phone Camera: Use a phone as a camera
- Stream images taken by the phone to Director device
- Stream images taken by the phone to a destination via SRT
- Remote Assistant: Control Director device remotely
- Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots, and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- View real-time device status
- Power off the device remotely
WEB UI
- Set and manage device
- Switch and manage scenes, set switch mode and effect, implement FTB, freeze scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- Control media files
- View real-time device status
- Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management
SCREEN
- Size: 5.44"
- Type: AMOLED
- Aspect ratio: 16:9
- Resolution: 1920x1080
- Brightness: 350 nits
- Color depth: 8-bit
- Contrast ratio: 6000:1
- Color gamut: 105% NTSC
- Refresh rate: 60Hz
- Viewing direction: All
- PPI: 405
- Touchscreen: Capacitive
- Screen coating: Anti-fingerprint coating
STORAGE
- Local storage: 64 GB
- SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT
DIMENSIONS
- 147.2 mm x 90 mm x 28.5 mm
POWER
- AC power
- Power input: 12V/1.5A
- Maximum power consumption: 15W
- Battery pack
- 2x DC 7.4V (NP-F battery packs, not supplied)
- Hot swappable
BATTERY INDICATORS
- QTY: 2
- Green: 50% - 100%
- Orange: 25% - 50%
- Red: <25%
- Off: depleted
WORKING ENVIRONMENT
- Operating temperature: –10 to 50 deg C (AC power)
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
