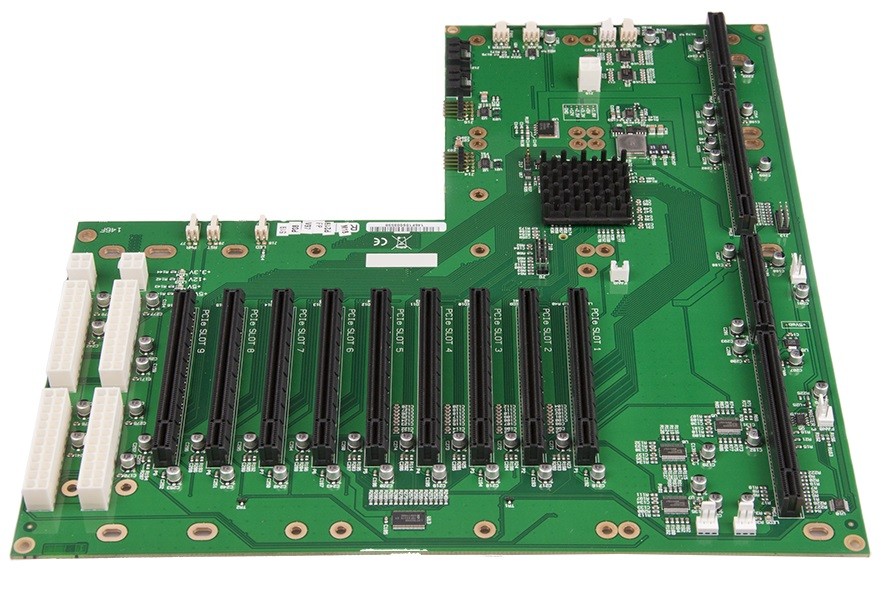

PCIe-Express9 – Backplane 9-Slot
£1,199.00
Express9-G3, 9-Slot PCIe Backplane
- Nine slot PCI Express backplane – 8 x4 lane slots plus 1 x8 lane slot
- One PICMG 1.3 SBC slot
- Supports 8GB/s full duplex links between backplanes using HLink-G3 and SLink-G3
- 48 lane PCIe 3.0 switch
- Compatible with a standard 4U IPC chassis
- Support for daisy chaining multiple backplanes
The backplane provides x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The backplane can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.
Description
Express 9 & 9-G3 Backplane
The EMS Express9 backplanes use advanced PCI Express switches to create a high bandwidth fabric that connects up to nine PCI Express plug-in cards into a host system.
The host can take the form of a Single Board Computer (SBC) which connects directly into the PICMG 1.3 system board slot of the Express9, creating a stand-alone 9 slot PC system. Alternatively a remote host can be connected into the Express9 backplane using EMS’s HLink-G3 and SLink-G3 products, transforming the Express9 into a 9 slot expansion backplane. Using multiple Express9 backplanes configured in expansion mode allows the construction of very large systems (up to 41 slots).
The Express9 backplanes provide nine 16-lane physical connectors, eight of which are electrically configured as 4-lane slots, and one of 8-lanes (slot 1). The eight lane slot can be used normally, or can accept a EMS HLink-G3 board to extend the PCI Express bus, over eight lanes, onto a subsequent Express9 expansion board.
The EMS Express9 uses PCIe 2.0 (Gen2) switching technology. The peak bandwidth available from the PICMG and slot 1 is 4 GB/s and the peak bandwidth from slots two to nine is 2 GB/s. The PICMG and the nine slots are all operating in bi-directional mode.
Express 9-G3 Backplane
The EMS Express9-G3 uses PCIe 3.0 (Gen3) switches to boost the data bandwidths to 4 GB/s and 8 GB/s respectively. Even when the Express9-G3 is expected to be used with plug in cards that are only Gen1 or Gen2 rated, the additional bandwidth can still be used to provide a peak bidirectional bandwidth between backplanes of 8 GB/s (using the HLink-G3 and SLink-G3 board pair). When used in this way as part of a multi-chassis data wall system, for example, this link bandwidth eliminates the bottleneck between capture cards in one chassis and display cards in another chassis. As a guide, the 8GB/s bandwidth can handle approximately 14 full HD streams at 60 Hz and 32 bits per pixel in either direction.
Connecting multiple Express9 & Express9-G3 backplanes
Star Connection or Daisy Chain. . This configuration provides a high number of available PCI Express slots supporting low latency.
All PCI Express slots in the master chassis (containing the SBC) are populated with a HLink-G3 card. Each HLink-G3 is then connected to an expansion chassis using an ExCable-G3 and SLink-G3 card
| Product Name/Order Code | Description |
| Express9 | 9 slot PCI Express Gen.2 Expansion backplane PCIe 2.0 switch |
| Express9-G3 | 9 slot PCI Express Gen.3 Expansion backplane PCIe 3.0 switch |
Specifications
Specifications:
VIDEO INPUT
- HDMI
- Port: 2x HDMI 1.4 Type-A port
- Typical resolution/frame rate:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080i 25/29.97/30
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p 50/100
- 720x576i 25/50
- 720x480p 59.94/60
- 720x480i 29.97/30
- Color depth: 8/10/12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- USB
- Port: 2x USB 3.0 Type-A port
- Resolution/frame rate: Up to 1920x1080p, 60fps
- Codec: YUYV, MJPG, NV12
- Phone Camera
- Connection mode: LAN
- Resolution/frame rate: Up to 1080p, 60fps
- SRT stream
- Resolution/frame rate: Up to 1080p, 60fps
- RTMP stream
- Resolution/frame rate: Up to 1080p, 60fps
- NDI stream
- NDI® HX2 or NDI® HX3
- Resolution/frame rate: Up to 1080p, 60fps
- Video
- Resolution: Up to 4K
- Codec: H.264
- Format: MOV/MP4
- Picture
- Format: JPEG/PNG/BMP
AUDIO INPUT
- Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
- Audio input from USB port: 2-channel (only microphone supported)
- Audio input from phone microphone
- Audio from SRT stream
- Audio from RTMP stream
- Audio from NDI stream
- Audio embedded in video files
- Background music (BGM): MP3, M4A, WAV files
VIDEO OUTPUT
- Streaming and recording
- Resolution: 1080p, 720p, 540p, 360p (only for NDI)
- Frame rate: 60fps, 30fps, 15fps
- Bitrate:
- NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
- Others: up to 30.0Mbps, down to 256kpbs
- Key frame interval: customizable
- Profile: High profile, Main profile, Baseline profile
- Bitrate mode: VBR, CBR
- USB-C DP-OUT
- Port: 1* USB 3.0 Type-C port
- Display: 1920x1080
- Frame rate: 60fps
- Sampling format: RGB 4:4:4
AUDIO OUTPUT
- Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
- Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
- Audio output via USB-C OUT port: 2-channel, 48 KHz, 16-bit
- Audio output via USB-A port: 2-channel, 48 KHz, 16-bit
FEATURES OF USB-A PORT
- Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
- Connect to a USB flash drive
- To transfer video, picture, audio and other media files, firmware update files, log files, etc.
- Supported system format: FAT32, exFAT and NTFS
FEATURES OF USB-C OUT PORT
- Connect to an external screen
- Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
- A/V display mode options: Clean Program, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
- Image rotation: Rotate 90° to left, or rotate 90° to right
- Connect to a computer
- Transfer video, picture, audio and other media files, firmware update files, log files, etc.
NETWORK
- Supports Ethernet and WiFi
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and AP modes supported
- Supports Bluetooth for audio monitoring with Bluetooth devices
- Bluetooth: BT 5.0
DIRECTOR UTILITY APP
- OS version: iOS 11 and later, Android 7.0 and later
- Phone Camera: Use a phone as a camera
- Stream images taken by the phone to Director device
- Stream images taken by the phone to a destination via SRT
- Remote Assistant: Control Director device remotely
- Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots, and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- View real-time device status
- Power off the device remotely
WEB UI
- Set and manage device
- Switch and manage scenes, set switch mode and effect, implement FTB, freeze scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- Control media files
- View real-time device status
- Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management
SCREEN
- Size: 5.44"
- Type: AMOLED
- Aspect ratio: 16:9
- Resolution: 1920x1080
- Brightness: 350 nits
- Color depth: 8-bit
- Contrast ratio: 6000:1
- Color gamut: 105% NTSC
- Refresh rate: 60Hz
- Viewing direction: All
- PPI: 405
- Touchscreen: Capacitive
- Screen coating: Anti-fingerprint coating
STORAGE
- Local storage: 64 GB
- SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT
DIMENSIONS
- 147.2 mm x 90 mm x 28.5 mm
POWER
- AC power
- Power input: 12V/1.5A
- Maximum power consumption: 15W
- Battery pack
- 2x DC 7.4V (NP-F battery packs, not supplied)
- Hot swappable
BATTERY INDICATORS
- QTY: 2
- Green: 50% - 100%
- Orange: 25% - 50%
- Red: <25%
- Off: depleted
WORKING ENVIRONMENT
- Operating temperature: –10 to 50 deg C (AC power)
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
Accessories
You May Also Like...
Related products

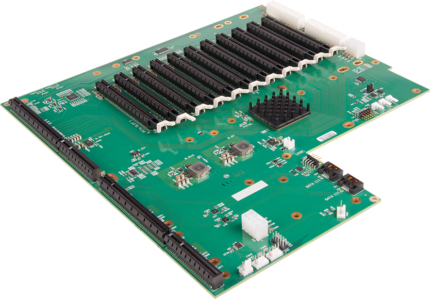

Express11 PCIe 11-Slot Backplane
