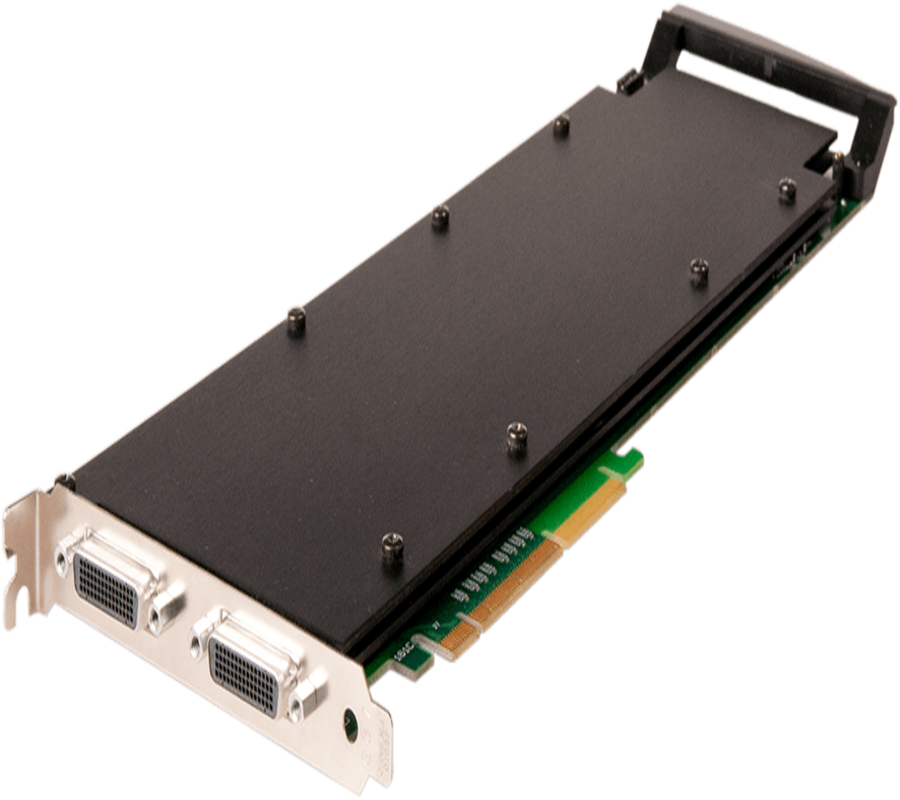

Xtreme-HD4
£2,509.00
Quad Channel DVI-I Capture Card
- 8 Lane PCI Express Gen.3 bus
- 3.2 GB/s total capture bandwidth in 4 PCIe lanes
- Gen.3 or 8 Lanes Gen.2
- 4 x EMS capture processors
- Frame buffer memory 4 x 256 MB
- All standard Xtreme Range features
- EMS unified Windows and Linux driver support
The XtremeHD4 is a high end, four channel, high definition video capture card delivering performance and flexibility in demanding environments. The XtremeHD4 has four independent video capture channels, supporting high definition capture and analogue video.
Description
Xtreme-HD4 – Quad Channel DVI-I Capture Card
Capture four DVI-I High Definition DVI streams in a single capture card.
The Xtreme-HD4 is an eight lane PCI Express capture card with four independent video capture channels, supporting HD capture.
This video capture card provides a high performance high density video capture solution for control room, medical and other applications that require high capture bandwidth. The quad HD capture capability in combination with EMS’s multi stream and synchronization features enables resolutions up to 4096×2048 and Quad HD solutions.
The Xtreme-HD4 captures all four HD video channels simultaneously and triple buffers them into onboard storage for tear free video, alongside embedded HDMI audio streams can also be captured from each channel.
This full length video capture card has four capture processors, each providing 800 MB/s bandwidth.
Quad DVI‐I Capture Channel:
• HDMI / DVI / RGB /YPbPrVideo Capture
• Maximum resolution up to 4096 x 2048, at 165 MHz Pixel Clock (Digital modes) or 170 Msps in analogue modes.
• HDMI audio capture with streaming from each DVI Channel
• ~800 MB/s bandwidth per capture processor, 3.2GB/s for the card
Video Streaming Support
DirectShow drivers for WDM Streaming driver supports the following applications, to encode, record and stream video over networks or the Internet:
• Microsoft Media Encoder®
• VLC
• VirtualDub
• Any other DirectShow encoding software
For streaming applications, the Xtreme‐HD4 can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player.
Any application compatible with Windows® DirectShow technology can use the Xtreme‐HD4 due to it built‐in WDM support.
Audio Features
HDMIAudio capture and streaming from each DVI Channel supports audio capture to the PCI Express bus at popular sample rates from 44.1 to 96 ksamples/s at 16 bits/sample. The card supports playback and mixing of HDMI embedded audio.
EMS Software
The Xtreme‐HD4 is supplied with a powerful software application for configuring the format of the input sources and displaying the data. Simply connect your video source into the card, run the Xtreme‐HD4 application to automatically detect the video source format and display the captured video in a window on your desktop.
Software Capabilities
Timestamp support for streaming synchronization
• Synchronizations of multiple inputs across multiple cards
• Synchronize systems using network clock synchronization
• For edge blending and other applications
Flexible and configurable EDID Management
• Allows programming of custom EDID parameters for Capture cards
Low Input to Output Capture Latency
• DMA to third party graphics vendors back and front buffers via Direct3D
• Compatibility withAMD DirectGMA
• Compatibility with NvidiaGPUDirect
User Mode filter for source selection
• Enables cropping support in DirectShow on all inputs
• Supports Start and Stop trigger interface on all Visi0n inputs
EMS Unified XtremeDV Driver
• Multiple cards per system, 16 streams per input
• Frame sync and time stamping
• DirectShow interface
• The XRGBEasyAPI for advanced audio and video control
• Fully integrated for use with EMS VigiControl ‐ Wall Control software for video wall applications
Specifications
Specifications:
VIDEO INPUT
- HDMI
- Port: 2x HDMI 1.4 Type-A port
- Typical resolution/frame rate:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080i 25/29.97/30
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p 50/100
- 720x576i 25/50
- 720x480p 59.94/60
- 720x480i 29.97/30
- Color depth: 8/10/12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- USB
- Port: 2x USB 3.0 Type-A port
- Resolution/frame rate: Up to 1920x1080p, 60fps
- Codec: YUYV, MJPG, NV12
- Phone Camera
- Connection mode: LAN
- Resolution/frame rate: Up to 1080p, 60fps
- SRT stream
- Resolution/frame rate: Up to 1080p, 60fps
- RTMP stream
- Resolution/frame rate: Up to 1080p, 60fps
- NDI stream
- NDI® HX2 or NDI® HX3
- Resolution/frame rate: Up to 1080p, 60fps
- Video
- Resolution: Up to 4K
- Codec: H.264
- Format: MOV/MP4
- Picture
- Format: JPEG/PNG/BMP
AUDIO INPUT
- Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
- Audio input from USB port: 2-channel (only microphone supported)
- Audio input from phone microphone
- Audio from SRT stream
- Audio from RTMP stream
- Audio from NDI stream
- Audio embedded in video files
- Background music (BGM): MP3, M4A, WAV files
VIDEO OUTPUT
- Streaming and recording
- Resolution: 1080p, 720p, 540p, 360p (only for NDI)
- Frame rate: 60fps, 30fps, 15fps
- Bitrate:
- NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
- Others: up to 30.0Mbps, down to 256kpbs
- Key frame interval: customizable
- Profile: High profile, Main profile, Baseline profile
- Bitrate mode: VBR, CBR
- USB-C DP-OUT
- Port: 1* USB 3.0 Type-C port
- Display: 1920x1080
- Frame rate: 60fps
- Sampling format: RGB 4:4:4
AUDIO OUTPUT
- Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
- Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
- Audio output via USB-C OUT port: 2-channel, 48 KHz, 16-bit
- Audio output via USB-A port: 2-channel, 48 KHz, 16-bit
FEATURES OF USB-A PORT
- Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
- Connect to a USB flash drive
- To transfer video, picture, audio and other media files, firmware update files, log files, etc.
- Supported system format: FAT32, exFAT and NTFS
FEATURES OF USB-C OUT PORT
- Connect to an external screen
- Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
- A/V display mode options: Clean Program, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
- Image rotation: Rotate 90° to left, or rotate 90° to right
- Connect to a computer
- Transfer video, picture, audio and other media files, firmware update files, log files, etc.
NETWORK
- Supports Ethernet and WiFi
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and AP modes supported
- Supports Bluetooth for audio monitoring with Bluetooth devices
- Bluetooth: BT 5.0
DIRECTOR UTILITY APP
- OS version: iOS 11 and later, Android 7.0 and later
- Phone Camera: Use a phone as a camera
- Stream images taken by the phone to Director device
- Stream images taken by the phone to a destination via SRT
- Remote Assistant: Control Director device remotely
- Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots, and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- View real-time device status
- Power off the device remotely
WEB UI
- Set and manage device
- Switch and manage scenes, set switch mode and effect, implement FTB, freeze scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- Control media files
- View real-time device status
- Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management
SCREEN
- Size: 5.44"
- Type: AMOLED
- Aspect ratio: 16:9
- Resolution: 1920x1080
- Brightness: 350 nits
- Color depth: 8-bit
- Contrast ratio: 6000:1
- Color gamut: 105% NTSC
- Refresh rate: 60Hz
- Viewing direction: All
- PPI: 405
- Touchscreen: Capacitive
- Screen coating: Anti-fingerprint coating
STORAGE
- Local storage: 64 GB
- SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT
DIMENSIONS
- 147.2 mm x 90 mm x 28.5 mm
POWER
- AC power
- Power input: 12V/1.5A
- Maximum power consumption: 15W
- Battery pack
- 2x DC 7.4V (NP-F battery packs, not supplied)
- Hot swappable
BATTERY INDICATORS
- QTY: 2
- Green: 50% - 100%
- Orange: 25% - 50%
- Red: <25%
- Off: depleted
WORKING ENVIRONMENT
- Operating temperature: –10 to 50 deg C (AC power)
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
