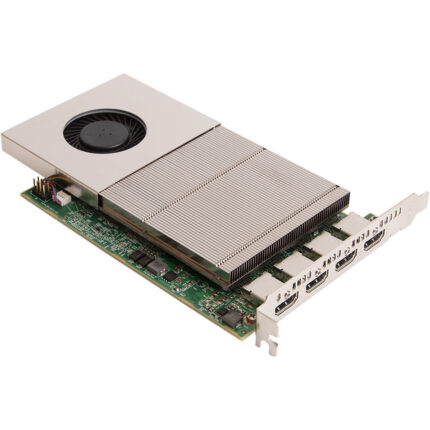

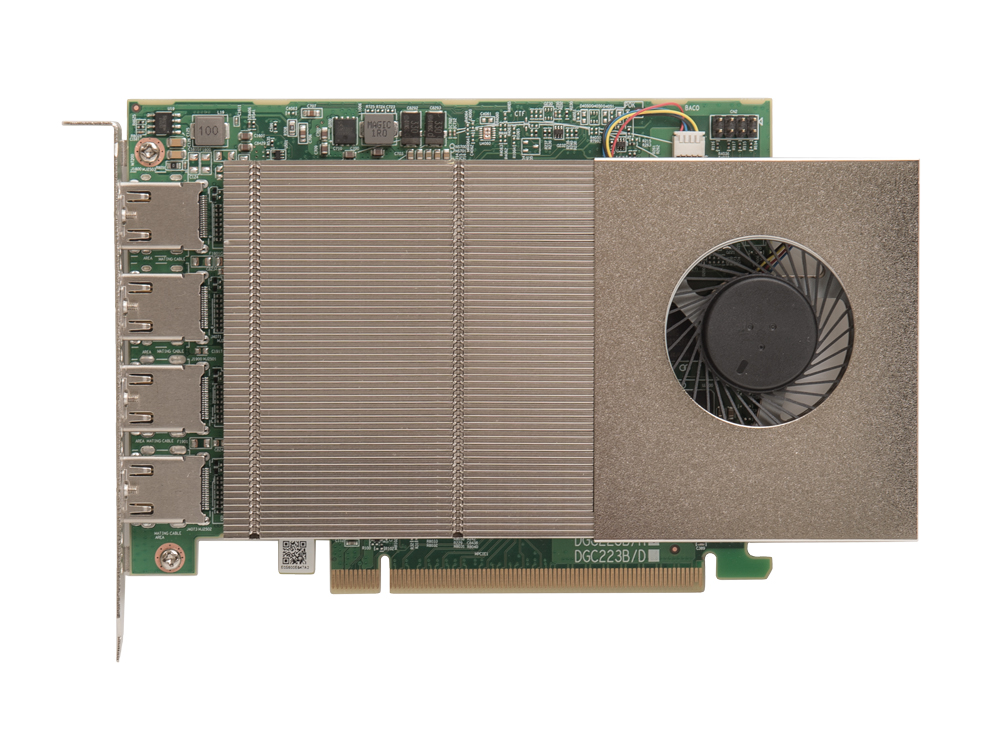

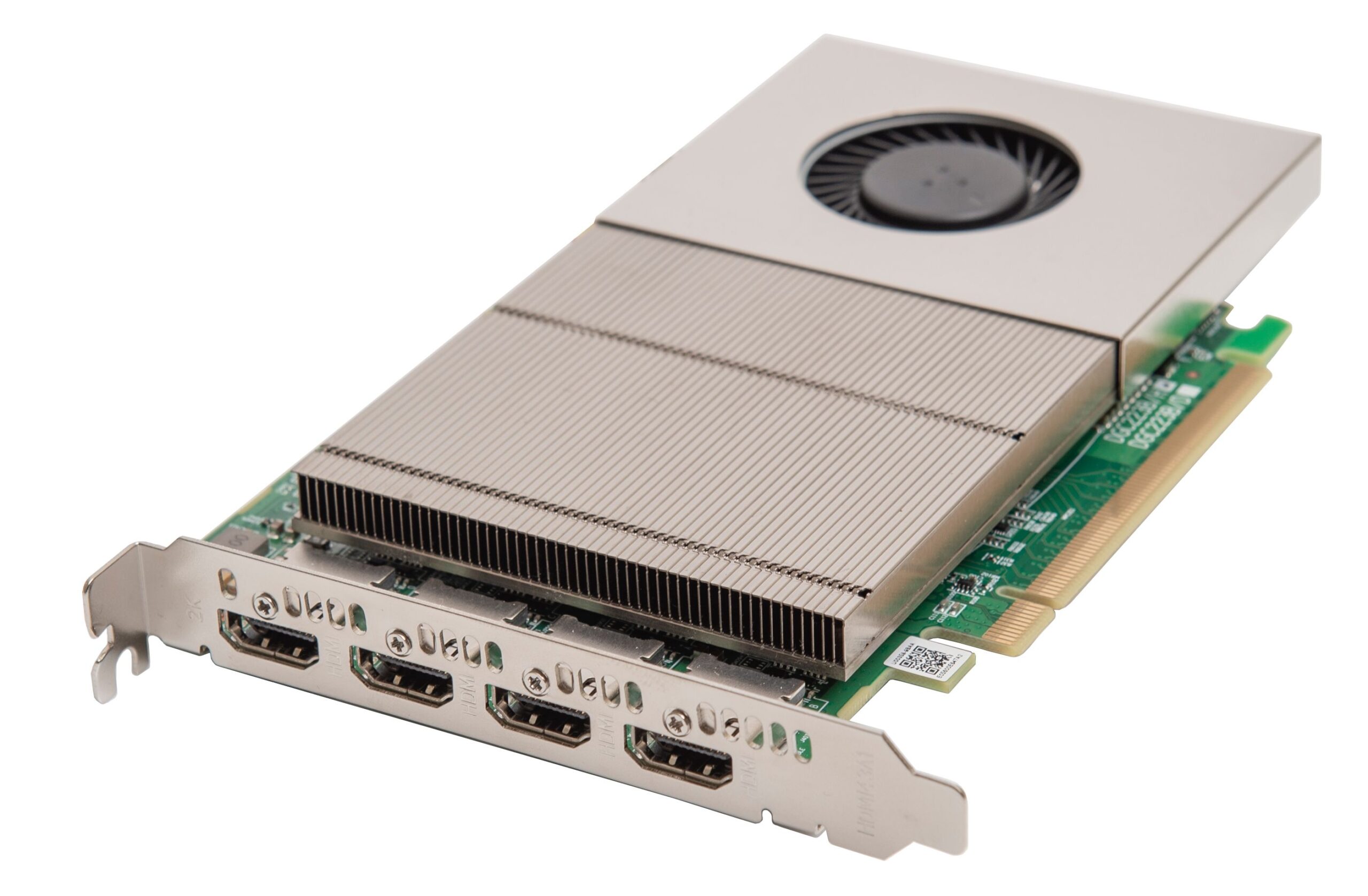

XtremeImage-2K

FEATURES OF USB-A PORT

• Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
• Connect to a USB flash drive
  • To transfer video, picture, audio and other media files, firmware update files, log files, etc.
  • Supported system format: FAT32, exFAT and NTFS

FEATURES OF USB-C OUT PORT

• Connect to an external screen
  • Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
  • A/V display mode options: Clean Program, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
  • Image rotation: Rotate 90° to left, or rotate 90° to right
• Connect to a computer
  • Transfer video, picture, audio and other media files, firmware update files, log files, etc.

NETWORK

• Supports Ethernet and WiFi
  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
  • WiFi: 2.4G/5G, Station and AP modes supported
• Supports Bluetooth for audio monitoring with Bluetooth devices
  • Bluetooth: BT 5.0

DIRECTOR UTILITY APP

• OS version: iOS 11 and later, Android 7.0 and later
• Phone Camera: Use a phone as a camera
  • Stream images taken by the phone to Director device
  • Stream images taken by the phone to a destination via SRT
• Remote Assistant: Control Director device remotely
  • Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and control PTZ camera
  • Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
  • Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
  • Start/stop recording, take screenshots, and manage album files
  • Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
  • Control and manage BGM
  • View real-time device status
  • Power off the device remotely

WEB UI

• Set and manage device
• Switch and manage scenes, set switch mode and effect, implement FTB, freeze scene, and control PTZ camera
• Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
• Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
• Start/stop recording, take screenshots and manage album files
• Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
• Control and manage BGM
• Control media files
• View real-time device status
• Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management

SCREEN

• Size: 5.44"
• Type: AMOLED
• Aspect ratio: 16:9
• Resolution: 1920x1080
• Brightness: 350 nits
• Color depth: 8-bit
• Contrast ratio: 6000:1
• Color gamut: 105% NTSC
• Refresh rate: 60Hz
• Viewing direction: All
• PPI: 405
• Touchscreen: Capacitive
• Screen coating: Anti-fingerprint coating

STORAGE

• Local storage: 64 GB
• SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT

DIMENSIONS

• 147.2 mm x 90 mm x 28.5 mm

POWER

• AC power
  • Power input: 12V/1.5A
  • Maximum power consumption: 15W
• Battery pack
  • 2x DC 7.4V (NP-F battery packs, not supplied)
  • Hot swappable

BATTERY INDICATORS

• QTY: 2
• Green: 50% - 100%
• Orange: 25% - 50%
• Red: <25%
• Off: depleted

WORKING ENVIRONMENT

• Operating temperature: –10 to 50 deg C (AC power)
• Storage temperature: –20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
