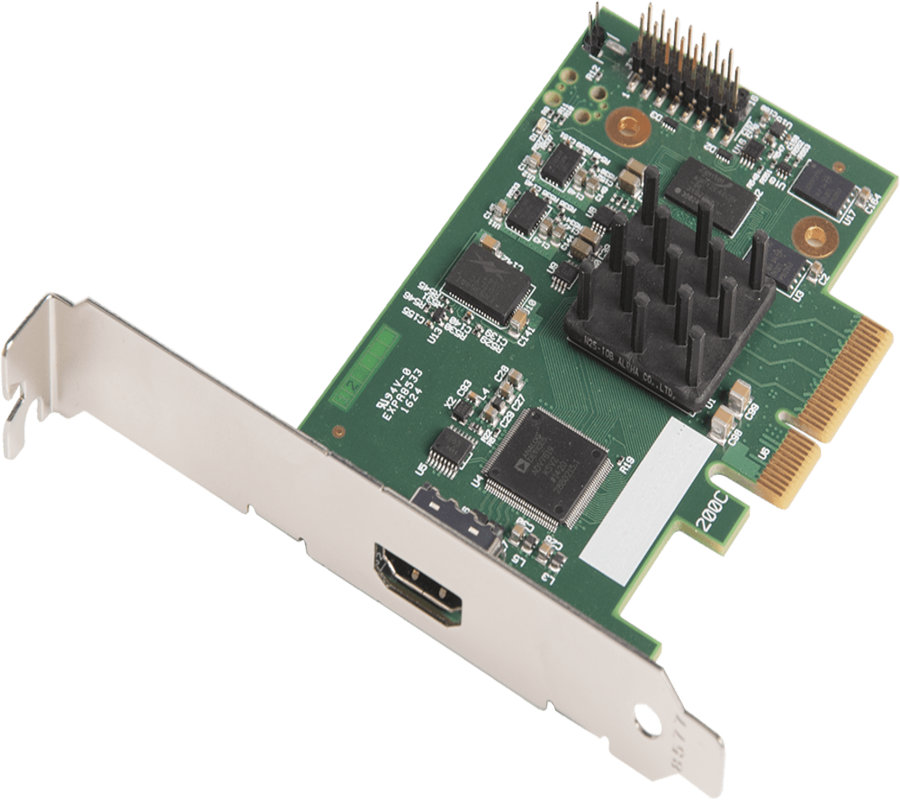

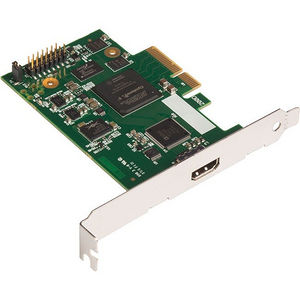

XtremeLC-HD
£416.00
Single channel HDMI capture card
- Up to 297 Mpixel/s clock capturing up to 4096x2160p @ 30fps
- 800 MB/s DMA bandwidth
- High performance up and down scaling
- Colour space conversion to support output formats
- PCI Express Gen 1 x 4 low profile
- Media Foundation supported
- EMS unified Windows® and Linux® driver support
XtremeLC-HD Single-Channel LiveStream Capture Card provides HDMI video and audio capture for small form factor appliances being used in medical environments, simulation systems, live events, PC and gaming console capture, lecture and presentation capture, and real-time streaming. More than one card can be added into a system for multiple capture channels
Description
Single channel “LiveStream:Capture” card
Discreet video capture is now the mainstay of many small form factor appliances being uses in markets such as lecture capture, distance learning and medical environments. The XtremeLC-HD provides HDMI capture for use within such applications.
EMS’s LiveStream:Capture architecture allows captured video to be processed and delivered in real time to a processor or graphics card. The XtremeLC-HD supports on board colour space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. The XtremeLC-HD natively supports 32, 24, 16 and 12 bit YUV and RGB formats.
Multi-application capture
The XtremeLC-HD capture card has been designed for use within application models such as:
- Medical environments
- Simulation systems
- Live events
- PC and gaming console capture
- Lecture and presentation capture
- Real time streaming
It is also possible to put more than a single card into a system for multiple capture channels.
Due to the nature of the LiveStream:Capture architecture, the XtremeLC-HD is not supported for wall controller applications that depend on EMS’s MultiStream technology.
Video streaming
Built upon the Microsoft AV stream model, XtremeLC-HD inputs can be accessed and enumerated in any DirectShow or Media Foundation supported application. A video for Linux (V4L) driver package is also available to download.
Tested applications includes:
- Microsoft Media Encoder
- VLC
- Telestream WireCast
- vMix
- Opencast Matterhorn
- VidBlaster
- OBS Project
- Adobe Flash Media Encoder
- Dataton Watchout
Features
- Single HDMI capture channel
- Up to 297 Mpixel/s clock capturing up to 4096x2160p @ 30fps
- 800 MB/s DMA bandwidth
- High performance up and down scaling
- Colour space conversion to support output formats
- PCI Express Gen 1 x 4 low profile
- EMS unified Windows® and Linux® driver support
Specifications
Specifications:
VIDEO INPUT
- HDMI
- Port: 2x HDMI 1.4 Type-A port
- Typical resolution/frame rate:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080i 25/29.97/30
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p 50/100
- 720x576i 25/50
- 720x480p 59.94/60
- 720x480i 29.97/30
- Color depth: 8/10/12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- USB
- Port: 2x USB 3.0 Type-A port
- Resolution/frame rate: Up to 1920x1080p, 60fps
- Codec: YUYV, MJPG, NV12
- Phone Camera
- Connection mode: LAN
- Resolution/frame rate: Up to 1080p, 60fps
- SRT stream
- Resolution/frame rate: Up to 1080p, 60fps
- RTMP stream
- Resolution/frame rate: Up to 1080p, 60fps
- NDI stream
- NDI® HX2 or NDI® HX3
- Resolution/frame rate: Up to 1080p, 60fps
- Video
- Resolution: Up to 4K
- Codec: H.264
- Format: MOV/MP4
- Picture
- Format: JPEG/PNG/BMP
AUDIO INPUT
- Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
- Audio input from USB port: 2-channel (only microphone supported)
- Audio input from phone microphone
- Audio from SRT stream
- Audio from RTMP stream
- Audio from NDI stream
- Audio embedded in video files
- Background music (BGM): MP3, M4A, WAV files
VIDEO OUTPUT
- Streaming and recording
- Resolution: 1080p, 720p, 540p, 360p (only for NDI)
- Frame rate: 60fps, 30fps, 15fps
- Bitrate:
- NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
- Others: up to 30.0Mbps, down to 256kpbs
- Key frame interval: customizable
- Profile: High profile, Main profile, Baseline profile
- Bitrate mode: VBR, CBR
- USB-C DP-OUT
- Port: 1* USB 3.0 Type-C port
- Display: 1920x1080
- Frame rate: 60fps
- Sampling format: RGB 4:4:4
AUDIO OUTPUT
- Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
- Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
- Audio output via USB-C OUT port: 2-channel, 48 KHz, 16-bit
- Audio output via USB-A port: 2-channel, 48 KHz, 16-bit
FEATURES OF USB-A PORT
- Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
- Connect to a USB flash drive
- To transfer video, picture, audio and other media files, firmware update files, log files, etc.
- Supported system format: FAT32, exFAT and NTFS
FEATURES OF USB-C OUT PORT
- Connect to an external screen
- Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
- A/V display mode options: Clean Program, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
- Image rotation: Rotate 90° to left, or rotate 90° to right
- Connect to a computer
- Transfer video, picture, audio and other media files, firmware update files, log files, etc.
NETWORK
- Supports Ethernet and WiFi
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and AP modes supported
- Supports Bluetooth for audio monitoring with Bluetooth devices
- Bluetooth: BT 5.0
DIRECTOR UTILITY APP
- OS version: iOS 11 and later, Android 7.0 and later
- Phone Camera: Use a phone as a camera
- Stream images taken by the phone to Director device
- Stream images taken by the phone to a destination via SRT
- Remote Assistant: Control Director device remotely
- Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots, and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- View real-time device status
- Power off the device remotely
WEB UI
- Set and manage device
- Switch and manage scenes, set switch mode and effect, implement FTB, freeze scene, and control PTZ camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch microphone and monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots and manage album files
- Set streaming servers, start/stop streaming, view streaming status and speed, and view live comments
- Control and manage BGM
- Control media files
- View real-time device status
- Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management
SCREEN
- Size: 5.44"
- Type: AMOLED
- Aspect ratio: 16:9
- Resolution: 1920x1080
- Brightness: 350 nits
- Color depth: 8-bit
- Contrast ratio: 6000:1
- Color gamut: 105% NTSC
- Refresh rate: 60Hz
- Viewing direction: All
- PPI: 405
- Touchscreen: Capacitive
- Screen coating: Anti-fingerprint coating
STORAGE
- Local storage: 64 GB
- SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT
DIMENSIONS
- 147.2 mm x 90 mm x 28.5 mm
POWER
- AC power
- Power input: 12V/1.5A
- Maximum power consumption: 15W
- Battery pack
- 2x DC 7.4V (NP-F battery packs, not supplied)
- Hot swappable
BATTERY INDICATORS
- QTY: 2
- Green: 50% - 100%
- Orange: 25% - 50%
- Red: <25%
- Off: depleted
WORKING ENVIRONMENT
- Operating temperature: –10 to 50 deg C (AC power)
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
