- XTREME VIDEO CAPTURE CARDS
XtremeDV-SDI4
Ideal for use in broadcast markets or with any SDI capable applications the XtremeDVI-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second.
- GRAPHICS CONTROLLER (MULTISCREEN)
XtremeImage-4K
4 channel DisplayPort 4K Graphics Card
- Four 4K60 4:4:4 HDMI 2.0 outputs
- Enables full 4K60 capture and display in EMS VSN controllers
- VIDEO WALL CONTROLLER SYSTEM
XtremeIPC-VSN-Expansion System
- 9 or 11 Slot Expansion Chassis
- Express9-G3 PCIe backplane providing 1 x 8 lane slot and 8 x 4 lane slots
- SOFTWARE & UTILITY
Vigi Control - Wall Management
- Easily control output sources such as IP feeds, video captures and local applications
- Create templates and produce zones on your video wall for easy placement of content.
Express11 PCIe 11-Slot Backplane
Express11-G3 Backplane
- 11 slot, Gen.3 PCI Express backplane
- Once PICMG 1.3 SBC slot
- Standard ATX form factor
- Support for multiple backplanes for large systems
- Supports 8 GB/s full duplex links
- 96 lanes PCI Express 3.0 switch
- Support for two SATA connections
- Provides headers for (1, 2 or 3) fans
The backplane provides x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The backplane can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.

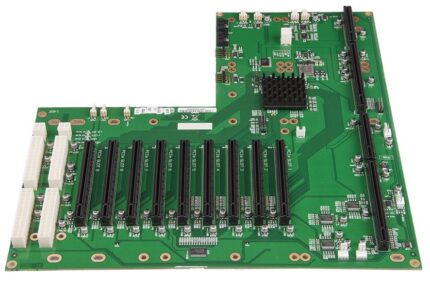

PCIe-Express9 – Backplane 9-Slot
Express9-G3, 9-Slot PCIe Backplane
The backplane provides x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The backplane can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.
- Nine slot PCI Express backplane – 8 x4 lane slots plus 1 x8 lane slot
- One PICMG 1.3 SBC slot
- Supports 8GB/s full duplex links between backplanes using HLink-G3 and SLink-G3
- 48 lane PCIe 3.0 switch
- Compatible with a standard 4U IPC chassis
- Support for daisy chaining multiple backplanes
The backplane provides x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The backplane can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.
VigiControl
Video Wall Management Software
VigiControl 10 allows users to easily control output sources such as IP feeds, video captures and local applications. These sources can be controlled by VigiControl 10 when the most elaborate and complex wall scenarios are required.
- Easily control output sources such as IP feeds, video captures and local applications
- Create templates and produce zones on your video wall for easy placement of content.
- Deploy templates over a single screen, multiple screens or an entire video wall.
- Template a window to group multiple pieces of content together.
- Select and crop particular areas of interest from a snapshot of your source and deploy them to the video wall.
- Decode up to 8 IP streams.
- Manipulate sources with full keyboard and mouse functionality (KVM)
- Advanced Software, Simplified Interface
VigiControl 10 allows users to easily control output sources such as IP feeds, video captures and local applications. These sources can be controlled by VigiControl 10 when the most elaborate and complex wall scenarios are required.
Xtreme-ActiveSQX
Active SQX Dedicated decoding card
The Xtreme-ActiveSQX includes a dedicated processor capable of decoding several IP streams simultaneously via the on-board ethernet ports.
- Dual RJ45 Ethernet ports
- On-board SQX decoding engine
- 800 Mb/s from each Ethernet 'input'
Decode multiple streams simultaneously:
- Up to three 4096x2160p at 30 fps
- Six 1920x1080p at 60 fps / 12 at 30 fps
- 50+D1 resolution streams @ 30fps
- Maximum will depend on H.264 profiles and levels of incoming media
The Xtreme-ActiveSQX includes a dedicated processor capable of decoding several IP streams simultaneously via the on-board ethernet ports.
Xtreme-HD4
Quad Channel DVI-I Capture Card
The XtremeHD4 is a high end, four channel, high definition video capture card delivering performance and flexibility in demanding environments. The XtremeHD4 has four independent video capture channels, supporting high definition capture and analogue video.
- 8 Lane PCI Express Gen.3 bus
- 3.2 GB/s total capture bandwidth in 4 PCIe lanes
- Gen.3 or 8 Lanes Gen.2
- 4 x EMS capture processors
- Frame buffer memory 4 x 256 MB
- All standard Xtreme Range features
- EMS unified Windows and Linux driver support
The XtremeHD4 is a high end, four channel, high definition video capture card delivering performance and flexibility in demanding environments. The XtremeHD4 has four independent video capture channels, supporting high definition capture and analogue video.
XtremeAV-HD1+
Two Channel Video Capture Card
Provides simultaneous SD and HD video capture through one channel of DVI-I or HDMI capture and one channel of composite video capture.
- HDMI, DVI, RGB, YPbPr, composite video and analogue audio capture
- High quality up/down scaling (7x5 Polyphase Filter)
- Flexible Audio Capture
- Multiple channel audio and video capture
- Small form factor low power consumption
- On card processor for real time mode detection
- Support for Windows and Linux (NOTE: Check Linux specific features with Sales)
Provides simultaneous SD and HD video capture through one channel of DVI-I or HDMI capture and one channel of composite video capture.

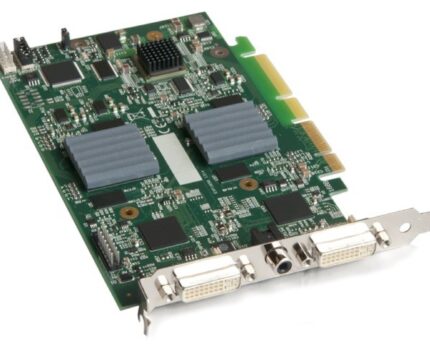

XtremeAV-HD2+
Two Channel Video Capture Card
XtremeAV-HD2+ A capture card with two channels of HD DVI video and an extra composite video input all operating simultaneously and independently; with full analogue and digital audio support
- Four lane PCIe lane bus, Net 1.6 GB/s total capture bandwidth
- Triple channel PCI Express capture card
- Direct DMA to graphics memory of third party graphics cards
- All standard features of the Xtreme range of capture cards
- Driver support included within the EMS unified Windows driver
XtremeAV-HD2+ A capture card with two channels of HD DVI video and an extra composite video input all operating simultaneously and independently; with full analogue and digital audio support

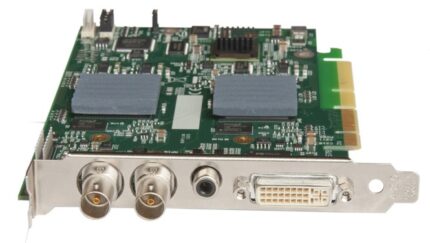

XtremeAV-SDI
Three Channel Video Capture Card
The XtremeAV-SDI HD/SD-SDI Capture Card is a four lane PCI Express capture card with three independent channels of video capture for 3G SDI, DVI and Composite video, with full analog and digital audio support. These three independent video channels can be captured simultaneously.
- Four lane PCIe lane bus, Net 1.6 GB/s total capture bandwidth
- Triple channel PCI Express capture card
- Direct DMA to graphics memory of third party graphics cards
- All standard features of the Xtreme range of capture cards
- Driver support included within the EMS unified Windows driver
The XtremeAV-SDI HD/SD-SDI Capture Card is a four lane PCI Express capture card with three independent channels of video capture for 3G SDI, DVI and Composite video, with full analog and digital audio support. These three independent video channels can be captured simultaneously.
XtremeDV-DP2
Dual HDMI 2.0 Video Capture Card
The XtremeDV-DP2 offers video professionals the ability to simultaneously capture multiple 4K, Ultra-High Definition, video feeds each at 60 frames per second.
- Two independent HDMI 2.0 capture channels
- Eight lane PCIe Gen.3 interface, Net 6 GB/s total capture bandwidth
- 2 GB Frame Buffer Memory
- Full 10-bit processing pipeline
- Up to 8K by 8K resolutions
- Built for the highest density systems supporting multiple inputs
- EMS unified Windows® and Linux® driver
The XtremeDV-DP2 offers video professionals the ability to simultaneously capture multiple 4K, Ultra-High Definition, video feeds each at 60 frames per second.

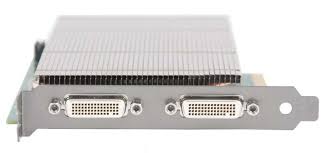

XtremeDV-HD4+
Four Channel HDMI Capture
XtremeDV-HD4+ audio video capture card provides an outstanding powerful solution for multiple HDMI or DVI video capture with support for HDCP. The XtremeDV-HD4+ has four channels of HDMI 1.4 two supporting 297MHz (3840x2160 at 30 fps) and two supporting 165 MHz (1920x1080 at 60 fps) all operating independently of each other.
- 4x HDMI 2.0 capture channels card
- Embedded Audio
- EMS unified Windows® and Linux® driver
XtremeDV-HD4+ audio video capture card provides an outstanding powerful solution for multiple HDMI or DVI video capture with support for HDCP. The XtremeDV-HD4+ has four channels of HDMI 1.4 two supporting 297MHz (3840x2160 at 30 fps) and two supporting 165 MHz (1920x1080 at 60 fps) all operating independently of each other.

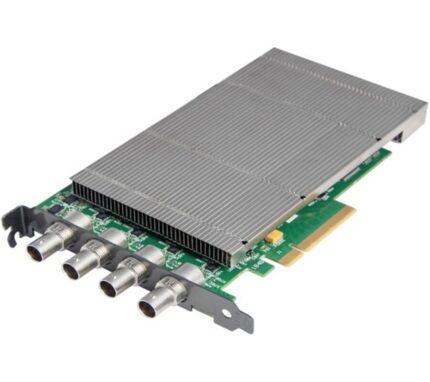

XtremeDV-SDI4
Four Channel 3G SDI Capture
Ideal for use in broadcast markets or with any SDI capable applications the XtremeDVI-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second.
- Four of 1920x1080p 60fps capture
- Eight lane PCIe Gen.3 interface
- Frame buffer memory - 768 MB
- Eight lane PCIe Gen.3 interface, Net 6 GB/s total capture bandwidth
- Single PCIe endpoint, allowing for more cards & captures to be placed within a single system
- Support for multi-channel audio
Ideal for use in broadcast markets or with any SDI capable applications the XtremeDVI-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second.

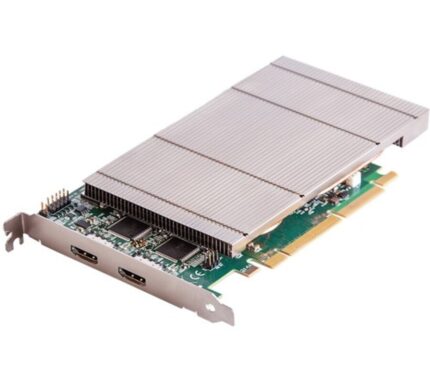

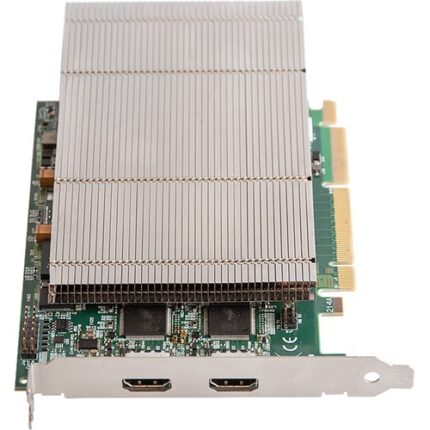

XtremeDV-UHD2
Dual HDMI 2.0 Video Capture Card
AV integrators demand the highest resolution video offering both detail and colour accuracy when creating the most stunning visual displays. From command and control rooms to reception areas, collaboration environments and digital signage applications, the XtremeDV-UHD2 ensures the very best quality and ultimate customer satisfaction.
- Two independent HDMI 2.0 capture channels
- Eight lane PCIe Gen.3 interface, Net 6 GB/s total capture bandwidth
- 2 GB Frame Buffer Memory
- Full 10-bit processing pipeline
- Up to 8K by 8K resolutions
- Built for the highest density systems supporting multiple inputs
- Full support of the Vision Performance Feature set
- EMS unified Windows® and Linux® driver
AV integrators demand the highest resolution video offering both detail and colour accuracy when creating the most stunning visual displays. From command and control rooms to reception areas, collaboration environments and digital signage applications, the XtremeDV-UHD2 ensures the very best quality and ultimate customer satisfaction.
