Blackmagic Design

Streaming Encoder 4K & Streaming Decoder 4K

Professional self-contained streaming processors for live broadcasting and point-to-point internet video links. Stream in H.264 or H.265 up to 4K60 — no computer, no complicated software. Simply connect your SDI source and go live.

2Models
4K60Max Res.
H.265Codec

Streaming Encoder 4K — What can it do?

  • ›Stream live to YouTube, Facebook, X, Twitch and any RTMP/SRT platform
  • ›No PC required — connect SDI camera directly and go live
  • ›Stream in 4K60 H.265 or HD H.264 — up to 2160p60
  • ›Use 4G or 5G phone for mobile data when no ethernet is available
  • ›Use as a USB webcam output for Zoom, Teams and software
  • ›Create broadcast links to a remote Streaming Decoder 4K
  • ›Full tally, talkback and remote camera control when paired with Decoder
  • ›REST API for automation and remote control via software

Encoder + Decoder — Point-to-Point Broadcast

The Streaming Encoder 4K and Streaming Decoder 4K work together to create professional internet-based broadcast links between remote locations.

Encoder at camera location Connects to your SDI camera, encodes and streams over internet
Decoder at production end Receives stream, outputs 12G-SDI and HDMI for switcher/router
Tally & talkback return Tally light and talkback go back to the camera operator automatically
Camera control return Remote camera iris, focus and colour control from the studio
Ideal for Sports, news, remote events, houses of worship, live entertainment
✓ H.264 & H.265 encoding ✓ 12G-SDI input up to 4K60 ✓ SRT & RTMP streaming ✓ 4G/5G mobile tethering ✓ Built-in 2.2" LCD display ✓ REST API control
BDLKWEB/D/SED4K

Blackmagic Streaming Encoder 4K

Self-contained H.264 and H.265 hardware encoder for live streaming up to 4K60. Stream to YouTube, Facebook, X, Twitch and more via SRT or RTMP. 12G-SDI input with built-in downconverter. USB webcam output. 4G/5G phone tethering for mobile data. No PC required.

H.264/H.265 12G-SDI 4K60 SRT RTMP 4G/5G USB Webcam Out No PC
Price on Application
Further Info Enquire →
BDLKWEB/J/DES4K

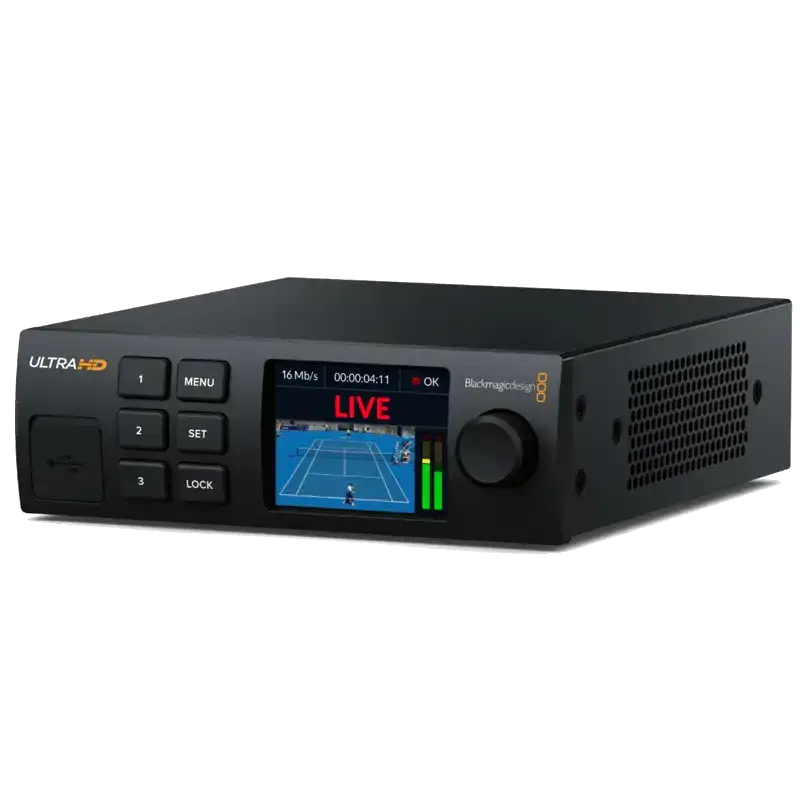

Blackmagic Streaming Decoder 4K

Professional streaming decoder that receives H.264 or H.265 streams and converts them to 12G-SDI and HDMI outputs. Works with the Streaming Encoder 4K to create point-to-point broadcast links over the internet. Includes return tally, camera control and talkback. Blackmagic Cloud support.

H.264/H.265 Decode 12G-SDI Out HDMI Out Tally & Talkback Point-to-Point Camera Control
Price on Application
Further Info Enquire →

Compatible Streaming Platforms & Software

YouTube Live Facebook Live X (Twitter) Twitch Restream.IO Vimeo Zoom Skype Microsoft Teams OBS Studio Wirecast Wowza Streaming Engine BoxCast Castr Vimeo QuickTime Player VLC

Live Event Streaming

Stream conferences, concerts, sports events and ceremonies live to multiple platforms simultaneously. No laptop or complex streaming PC needed on location.

Remote Sports Production

Send 4K SDI camera feeds from remote locations back to your production centre over the internet with full tally and camera control return.

Corporate Live Streaming

Town halls, product launches, training and investor events streamed professionally with broadcast-grade quality from any venue with internet access.

Houses of Worship

Live stream services to YouTube and Facebook in HD or 4K. The Encoder 4K is self-contained and simple to operate — no dedicated streaming technician needed.

News & ENG

Field reporters use the Streaming Encoder 4K with 4G/5G phone tethering as a broadcast-quality transmission device from any location, even without fixed internet.

Education & Lecture Streaming

Stream lectures, seminars and campus events live with professional broadcast quality. USB webcam output means it works directly with any conferencing or streaming platform.

Frequently Asked Questions

No — the Streaming Encoder 4K is completely self-contained. Simply connect your 12G-SDI camera or source, connect to ethernet or tether a 4G/5G phone, and start streaming. There is no PC, no streaming software and no complicated configuration. Everything is controlled via the front panel buttons and LCD, or remotely via the Blackmagic Streaming Utility software over ethernet.
The Streaming Encoder 4K supports any RTMP or SRT destination, which covers virtually all major platforms. Pre-configured profiles are available for YouTube, Facebook, X (Twitter), Twitch, Restream.IO, Vimeo, BoxCast, Castr and many more. It also works directly with Zoom, Skype, Microsoft Teams and OBS Studio via its USB webcam output.
H.264 (AVC) is the most widely compatible streaming codec, supported by all platforms via RTMP. H.265 (HEVC) delivers better quality at lower bitrates, particularly important for 4K streaming where bandwidth is critical. The Streaming Encoder 4K supports H.264 via RTMP and both H.264 and H.265 via SRT. For 4K streaming, H.265 via SRT gives the best quality-to-bandwidth ratio.
You connect a 4G or 5G smartphone to either of the USB-C ports on the front or rear panel using standard phone tethering. The Encoder automatically uses the phone's mobile data connection for streaming. If ethernet is also connected, you can configure priority — ethernet primary with phone as automatic failover, or phone primary. This makes it ideal for field production where fixed internet is unavailable or unreliable.
The Streaming Decoder 4K receives H.264 or H.265 streams — from the Streaming Encoder 4K, Blackmagic cameras, or any compatible source — and converts them to 12G-SDI and HDMI video outputs. It is primarily used to create point-to-point broadcast links: Encoder at the camera/remote location, Decoder at the studio or production centre. The Decoder also sends tally, talkback and camera control back to the encoder end, enabling full remote camera operations.
The Streaming Encoder 4K can stream to multiple destinations simultaneously when used with a streaming service like Restream.IO, which distributes to multiple platforms from a single RTMP/SRT input. For direct multi-destination streaming without a third-party service, you would need to route to multiple encoders or use a streaming platform with multi-destination features.

Buy Blackmagic Streaming Encoder 4K & Decoder 4K — UK

Available available on nuuo.co.uk. Call +44 (0)116 2787812 for specification advice and pricing.
