2110 IP Mini Converters — SMPTE ST-2110 IP Video

Convert between SMPTE ST-2110 IP video, 12G-SDI and HDMI using compact 1/3 rack width converters. Integrate existing SDI broadcast cameras and equipment into modern 2110 IP broadcast infrastructure — no need to replace cameras or cabling.

5Models

12G-SDIMax SDI

SMPTEST-2110

What is SMPTE ST-2110?

SMPTE ST-2110 is the broadcast industry standard for transporting professional video, audio and data over IP networks. It replaces traditional SDI infrastructure with standard 10G or 100G ethernet cabling — enabling video signals to be routed, switched and distributed across a network in the same way as data.

Unlike NDI (which compresses video), SMPTE 2110 carries uncompressed 10-bit video for broadcast-grade quality. It is used by major broadcasters, live production facilities and studios transitioning from traditional SDI infrastructure to modern IP-based broadcast.

Which 2110 IP Mini do I need?

I need to display 2110 IP video on an HDMI monitor IP to HDMI — CONVNVIPE/IP/HDMI

I need to connect an SDI camera to a 2110 IP system BiDirect 12G — CONVNVIPF/IP/12G

I need 2110 IP + 12G-SDI + HDMI standards conversion SDI to HDMI 12G — CONVNVIPM/12G/HDMI02

I need IP to HDMI over long-distance fibre IP to HDMI SFP — CONVNVIPE/IP/HDMISFP

I need SDI camera to 2110 IP over long-distance fibre BiDirect 12G SFP — CONVNVIPF/IP/12GSFP

✓ SMPTE ST-2110 standard ✓ 12G-SDI up to 4K 2160p60 ✓ PoE++ powered from ethernet ✓ NMOS IS-04 & IS-05 support ✓ Point-to-point or switched ✓ RJ-45 & SFP fibre options

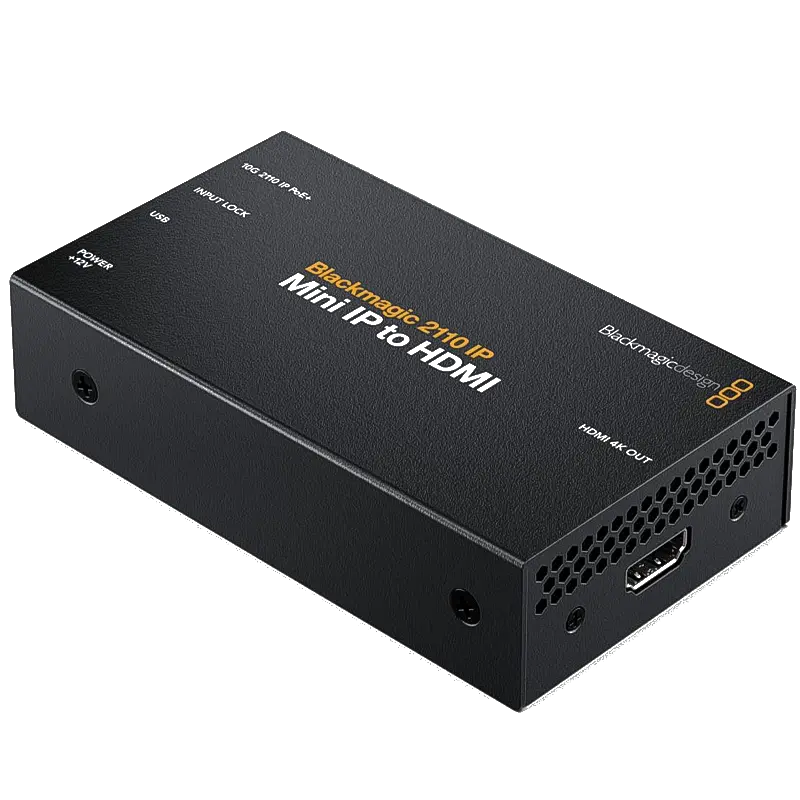

CONVNVIPE/IP/HDMI

Blackmagic 2110 IP Mini IP to HDMI

Convert SMPTE ST-2110 IP video to HDMI output. Receive 2110 IP video from your broadcast network and display it on any HDMI monitor or TV. Compact 1/3 rack width design with LCD display. PoE++ powered from 10G ethernet.

SMPTE 2110 IP to HDMI 1/3 Rack 10G Ethernet PoE++ LCD Display

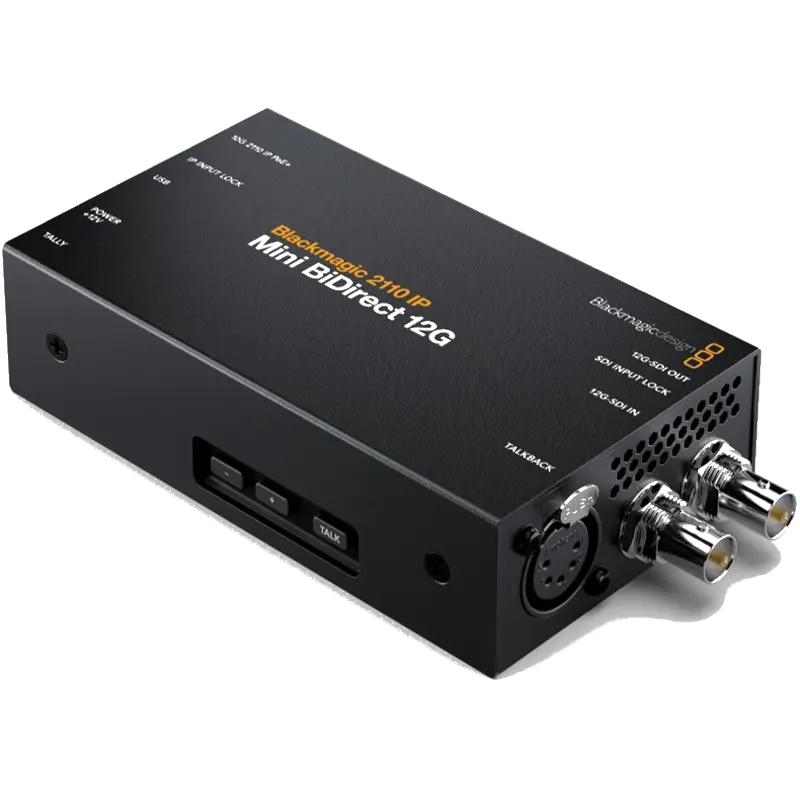

CONVNVIPF/IP/12G

Blackmagic 2110 IP Mini BiDirect 12G

Bidirectional 12G-SDI to SMPTE ST-2110 IP converter. Connect broadcast cameras with SDI to 2110 IP systems — handles both the SDI camera feed and SDI program return in one unit. 5-pin XLR talkback connection with volume control. PoE++ or DC powered.

12G-SDI Bidirectional SMPTE 2110 Talkback XLR PoE++ 4K 2160p60

CONVNVIPM/12G/HDMI02

Blackmagic 2110 IP SDI to HDMI 12G

Standards converter between SMPTE ST-2110 IP, 12G-SDI and HDMI. Premium quality conversion in all television standards — SD, HD and Ultra HD. 1/3 rack width with LCD display and headphone output. USB-C webcam output for video software integration.

SMPTE 2110 12G-SDI HDMI Standards Converter 1/3 Rack USB Webcam Out

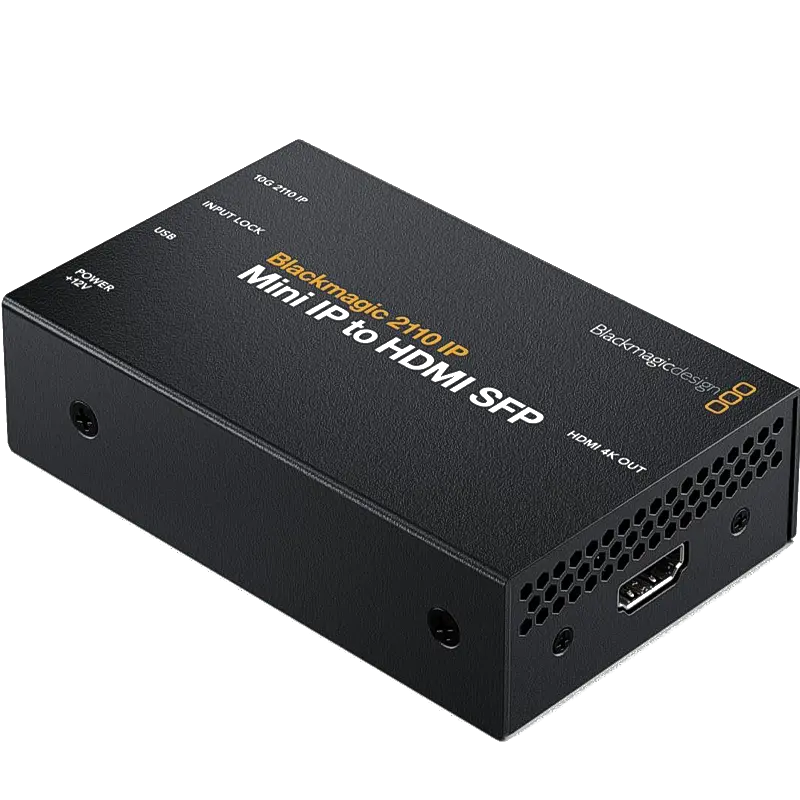

CONVNVIPE/IP/HDMISFP

Blackmagic 2110 IP Mini IP to HDMI SFP

Convert SMPTE ST-2110 IP video to HDMI over long distances using optical fibre SFP modules. Identical to the RJ-45 model but using an SFP socket that accepts 10G ethernet, fibre or SDI optical modules for extended range deployments.

SMPTE 2110 SFP Fibre IP to HDMI Long Distance Optical 10G Ethernet

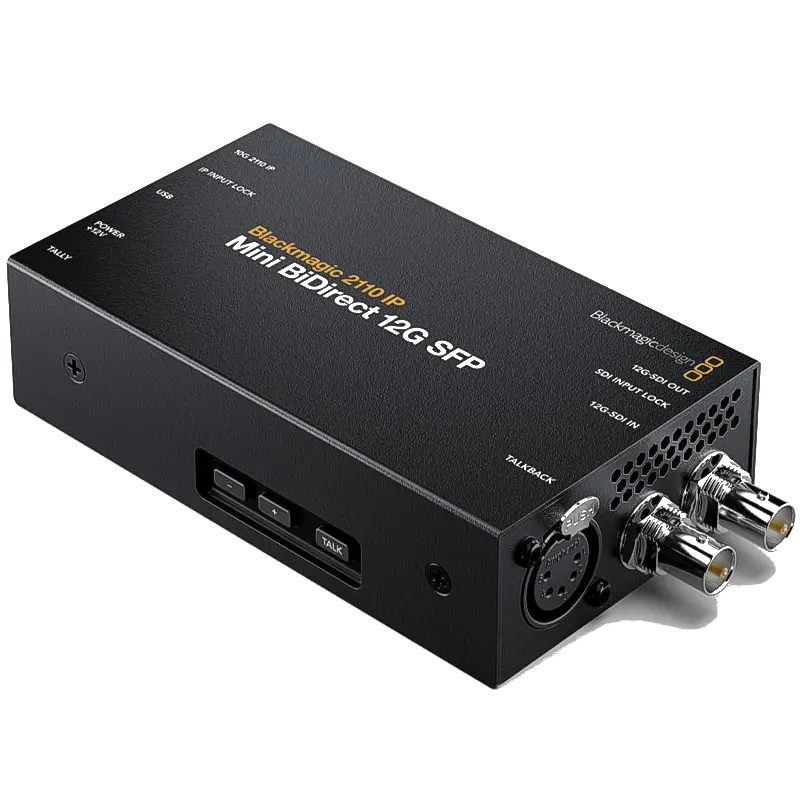

CONVNVIPF/IP/12GSF

Blackmagic 2110 IP Mini BiDirect 12G SFP

Bidirectional 12G-SDI to SMPTE ST-2110 IP converter using SFP fibre for long-distance connections. Identical to the RJ-45 BiDirect 12G but using SFP — handles SDI camera feed and program return over optical fibre. 5-pin XLR talkback with volume and press-to-talk.

12G-SDI Bidirectional SFP Fibre SMPTE 2110 Talkback XLR Long Distance

Key Features of the 2110 IP Mini Range

PoE++ Powered

BiDirect models power from the 10G ethernet connection — one cable carries both power and bidirectional video. Ideal for powering cameras and converters from the rack.

Point-to-Point Simple

Connect two 2110 IP converters directly to each other without a managed switch. They auto-configure for simple SDI-like workflow with a single ethernet cable.

NMOS Support

All models support NMOS IS-04 and IS-05 for discovery and connection management, enabling them to work as part of a virtual routing infrastructure.

Bidirectional Camera Feeds

BiDirect 12G models handle camera video and program return simultaneously — camera operators get full tally, talkback and program return feed.

Talkback XLR

5-pin XLR talkback headset connection on BiDirect models for communication between camera operators and the production booth via the 2110 IP connection.

SFP Fibre Options

SFP variants accept 10G ethernet, 3G-SDI, 6G-SDI or 12G-SDI optical modules for long-distance connections that exceed the 100m limit of copper ethernet.

Blackmagic 2110 IP — Frequently Asked Questions

Both are IP video standards, but they serve different purposes. SMPTE ST-2110 carries uncompressed 10-bit broadcast video over managed 10G or 100G ethernet networks — it is the professional broadcast standard used by major broadcasters and is more complex to set up. NDI (from NewTek/Vizrt) compresses video and works over standard gigabit ethernet, making it simpler to deploy in smaller studios and AV environments. For major broadcast infrastructure, SMPTE 2110 is the standard; for studio and AV environments, NDI is more practical.

For point-to-point connections, the Blackmagic 2110 IP Mini converters can connect directly to each other using a single ethernet cable — no switch required. For larger systems with multiple devices and sources, a managed 10G or 100G ethernet switch with IGMP snooping and PTP support is needed. Blackmagic's converters support NMOS, so they can be controlled and routed via a virtual router panel when connected to a managed switch infrastructure.

PoE++ (Power over Ethernet Plus Plus) is a standard that delivers up to 60W of power through a standard ethernet cable. The Blackmagic 2110 IP Mini BiDirect 12G models can be powered entirely from the 10G ethernet connection if a PoE++ capable switch or power injector is used. This means a single ethernet cable provides both the 2110 IP video signal and power to the converter — ideal for camera-mounted and remote applications.

Bidirectional means the converter handles video in both directions simultaneously — camera video goes from the SDI camera into the 2110 IP network, while the program return video comes back from the network to the SDI output on the same converter. This means camera operators see the programme feed in their viewfinder, and the converter also carries tally (recording/on-air indicators) and talkback audio back to the camera in the same ethernet connection.

The SFP variants (IP to HDMI SFP and BiDirect 12G SFP) are for installations where the distance between the converter and the switch or other equipment exceeds 100 metres — the limit for copper ethernet. The SFP socket accepts 10G ethernet optical modules (multimode or singlemode fibre) for runs of hundreds of metres or several kilometres. They are also useful where electromagnetic interference makes copper cable impractical, such as near RF transmitters or power equipment.

Buy Blackmagic 2110 IP Converters — UK

Available available on nuuo.co.uk. Call +44 (0)116 2787812 for advice on SMPTE 2110 system design and pricing.
